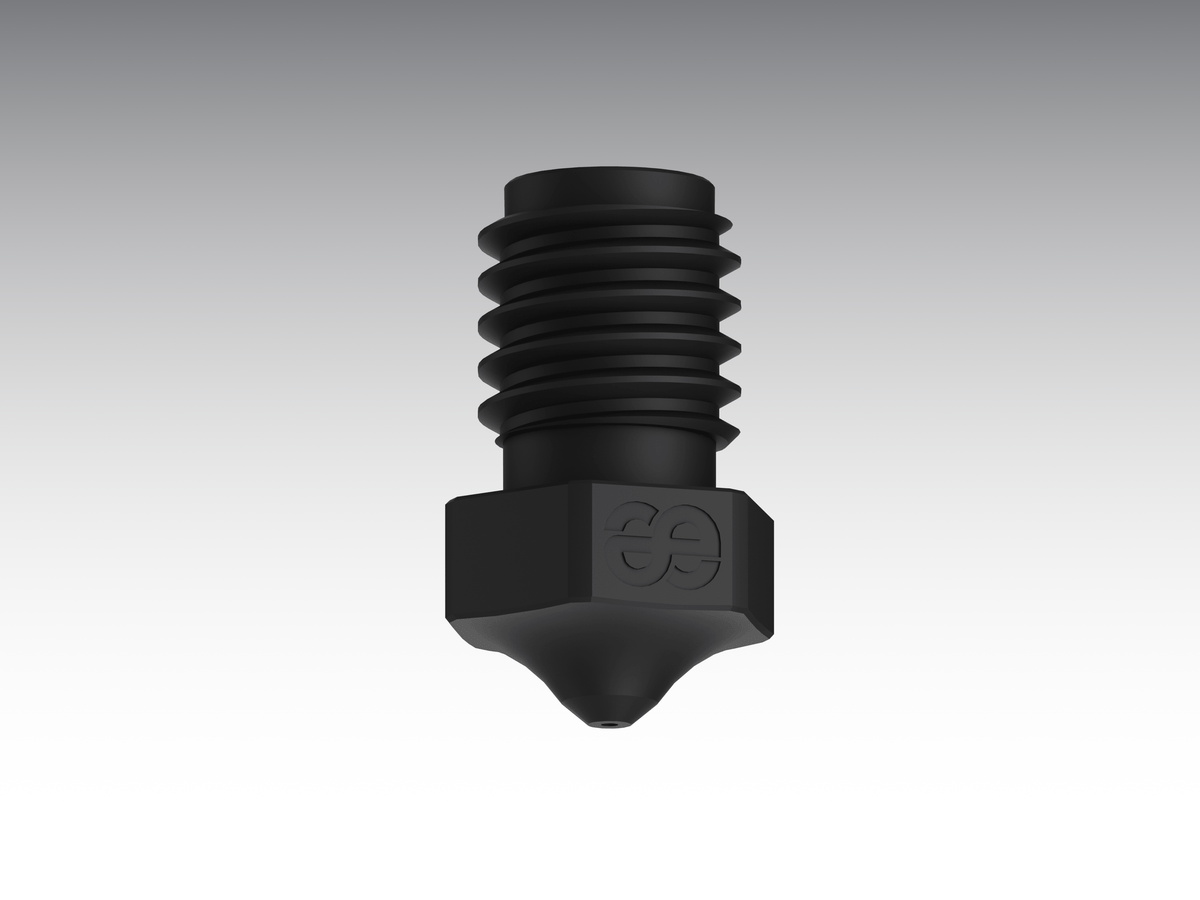

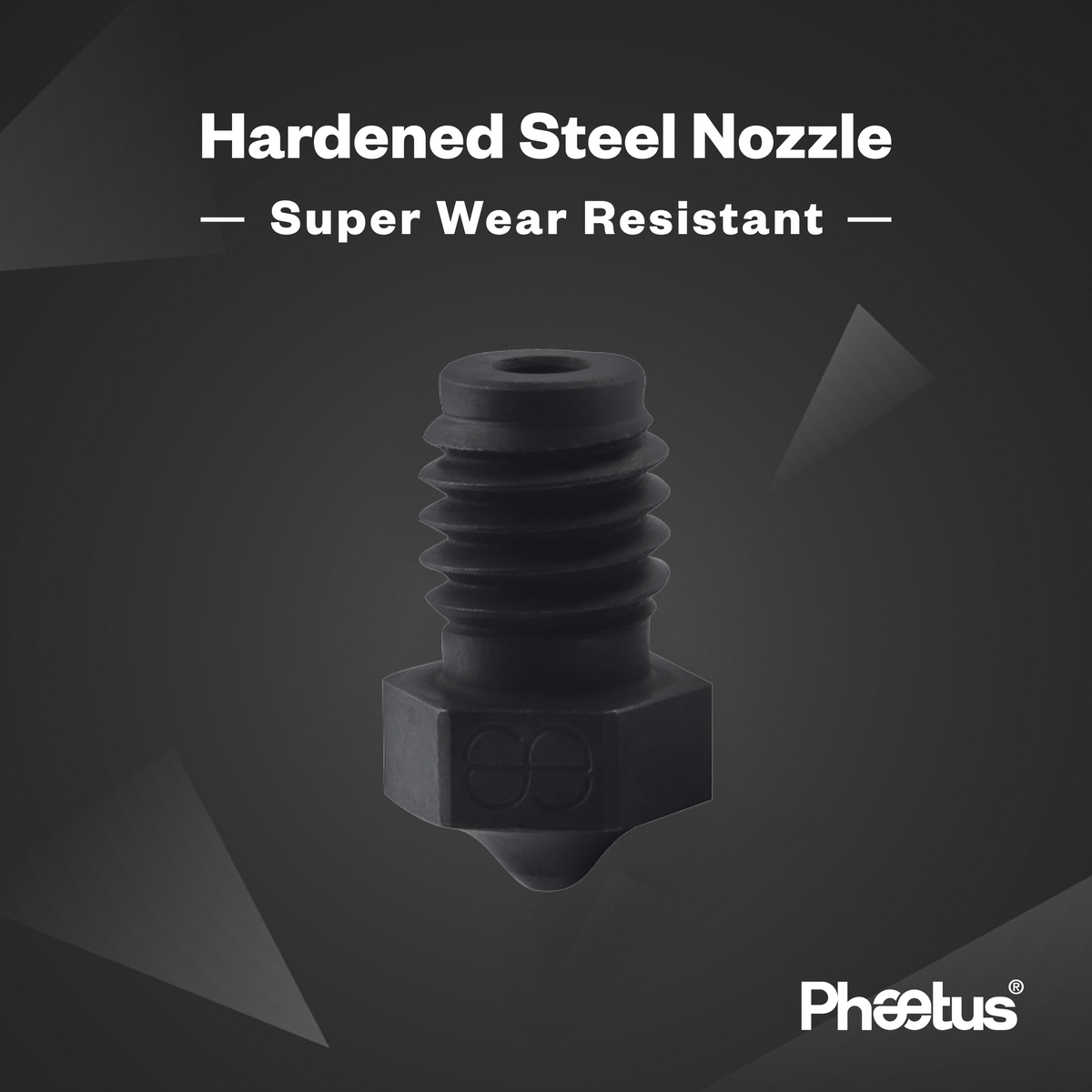

Hardenend Steel Nozzle

Phaetus Store NOZZLE HARDENED STEEL NOZZLE

/

Hardenend Steel Nozzle

$10.00

Shop Now

About this item

Wear-resistance, High temperature performance, suitable for 3D printing composites with abrasive additives such as Carbon Fiber, Steel, Wood, Boron Carbide, Tungsten and Phosphorescent pigment as well as conventional filaments.

Authencity Guaranteed

We only sell authentic products from verified brand partners and retail partners globally.

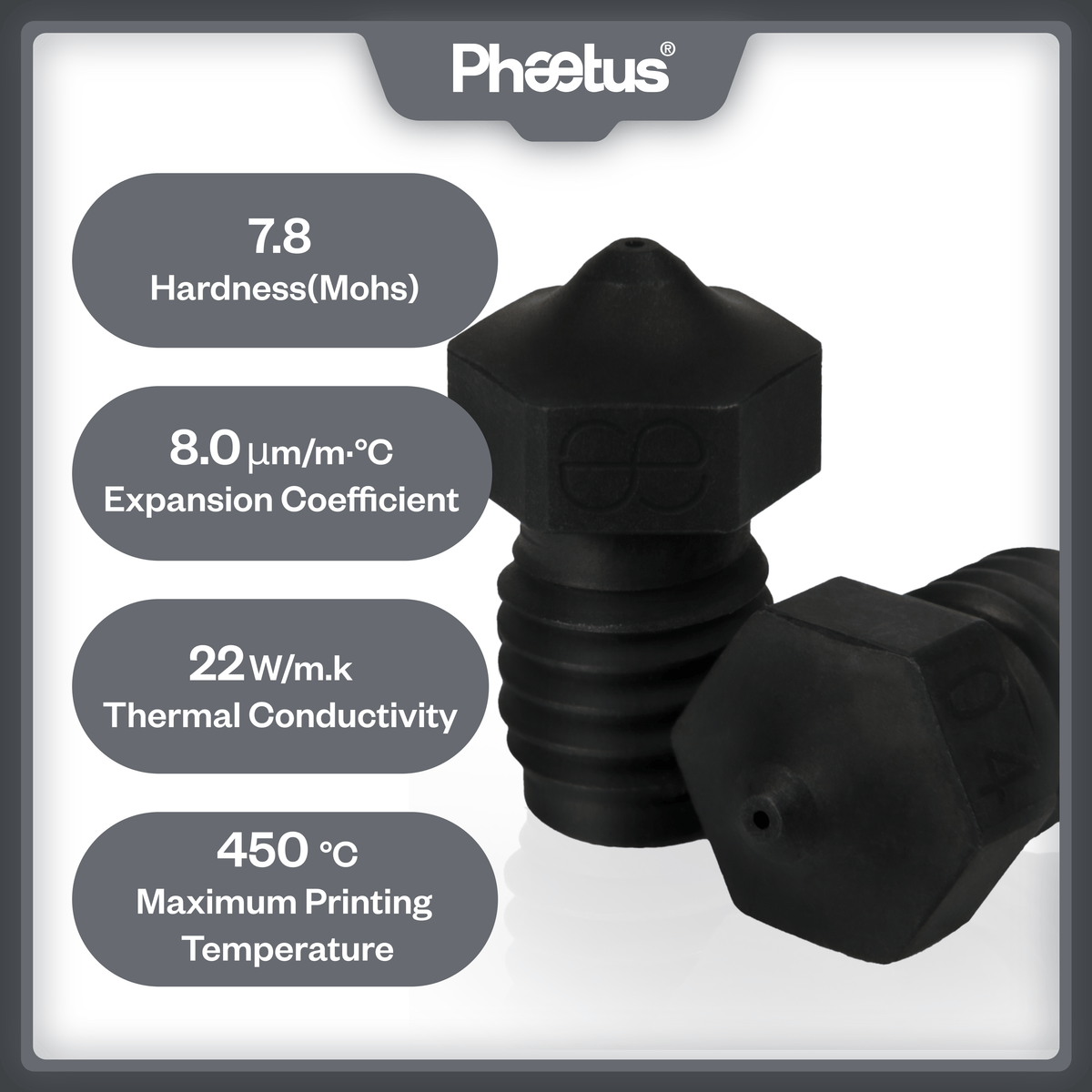

Product specifications

Hardness (Mohs)

7.8

Maximum Printing Temperature

450℃

Thermal Conductivity

26W/m·k

Expansion Coefficient

8μm/m·℃

Adaptation Models

1100-PS-HS
1200-PS-HS
1110-PH-HS

175：Φ0.10/Φ0.15/Φ0.20/Φ0.25/Φ0.30/Φ0.35/Φ0.40/Φ0.50/Φ0.60/Φ0.80/Φ1.00
300：Φ0.10/Φ0.15/Φ0.20/Φ0.25/Φ0.30/Φ0.35/Φ0.40/Φ0.50/Φ0.60/Φ0.80/Φ1.00

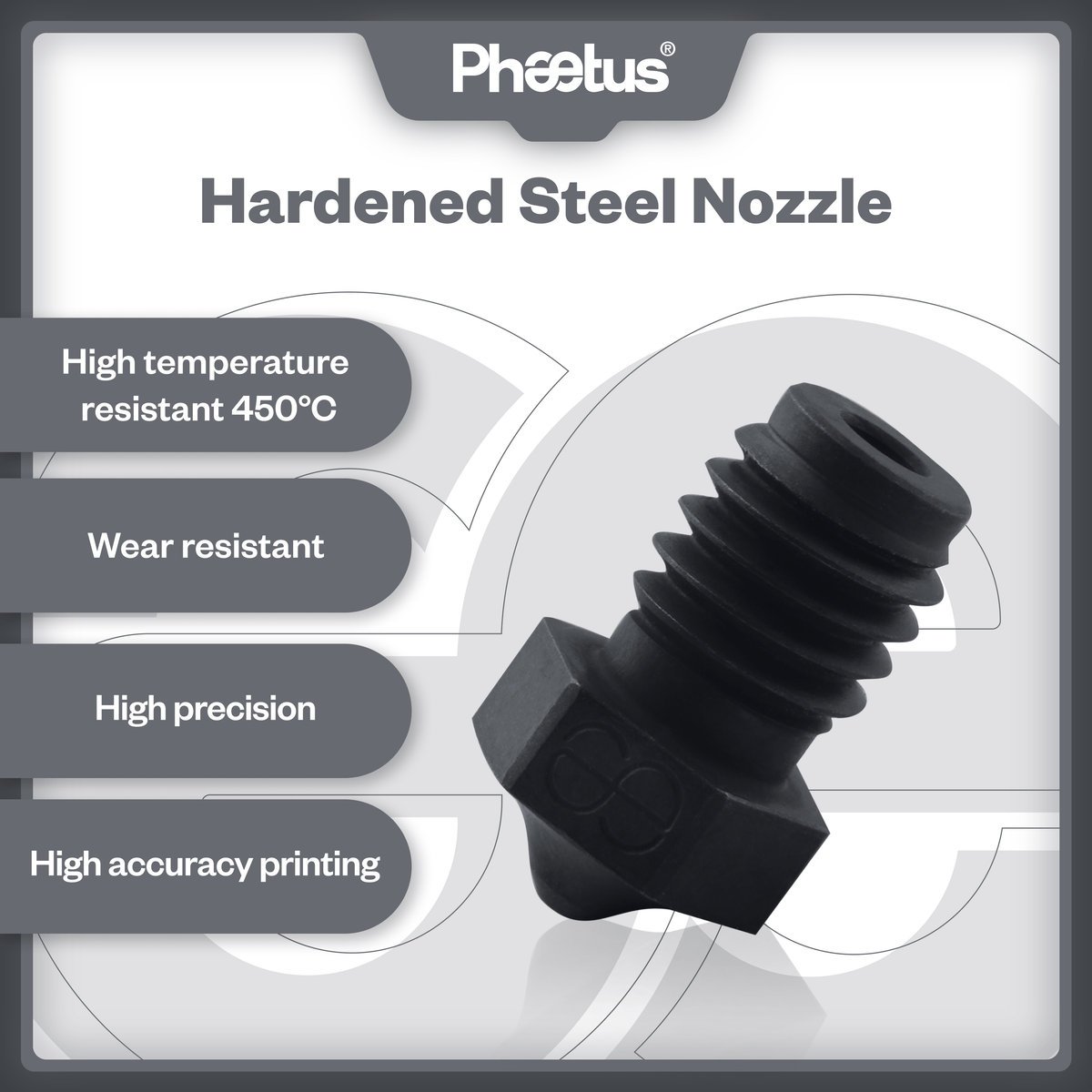

Performance Analysis

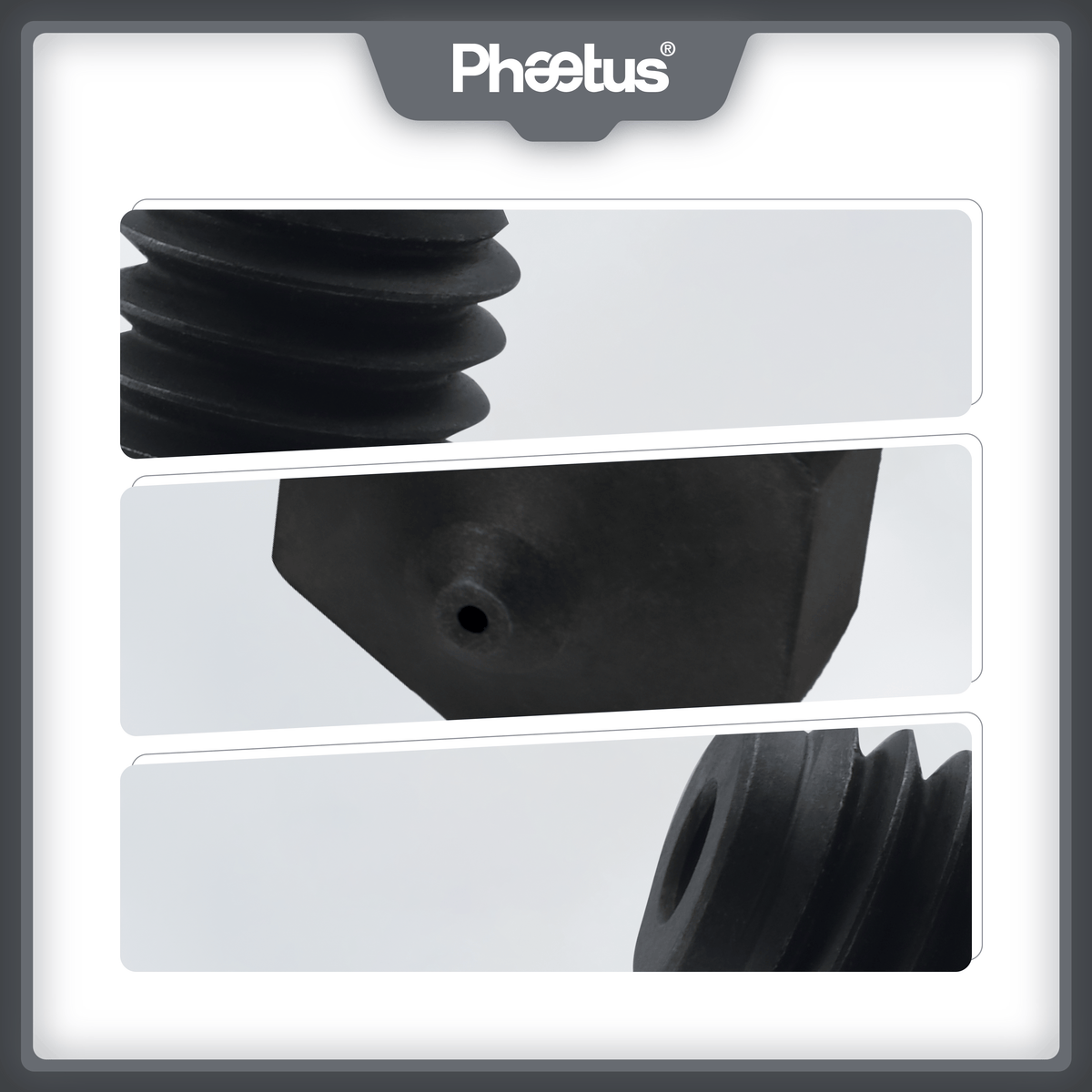

Hardness over HRC60 makes an minimum wear at the hole size after a long time printing with abrasive materials.Temperature resistance up to 450℃, easily handling with special engineering plastics such as PEEK.Special processing technology and post-treatment make the nozzle without burr at the edge of tip and without debris in the hole.Inner hole roughness lower than Ra0.4; Higher smoothness and less adhesion.Min. orifice diameter 0.1mm/±0.01mm in experimental level application, making sure high accuracy printing.High quality imported die steel material ensures the stability of performance.

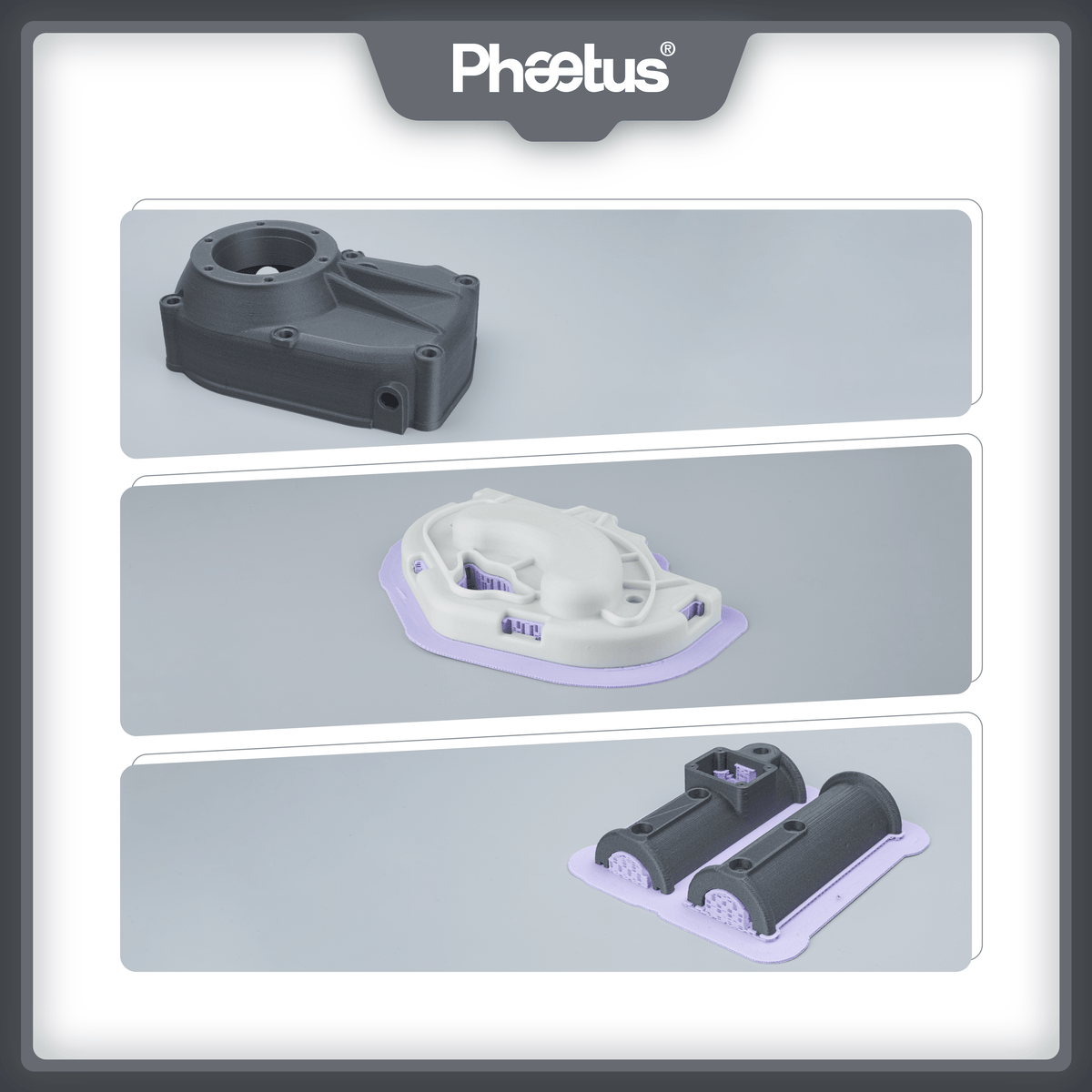

Applicable Filament

Wear-resistance, High temperature performance, suitable for 3D printing composites with abrasive additives such as Carbon Fiber, Steel, Wood, Boron Carbide, Tungsten and Phosphorescent pigment as well as conventional materials.

Product Features

Min. Orifice Diameter

φ0.1

Tolerance

±0.01mm

Inner Hole Roughness

≤Ra0.4μm

Concentricity

≤0.02mm
