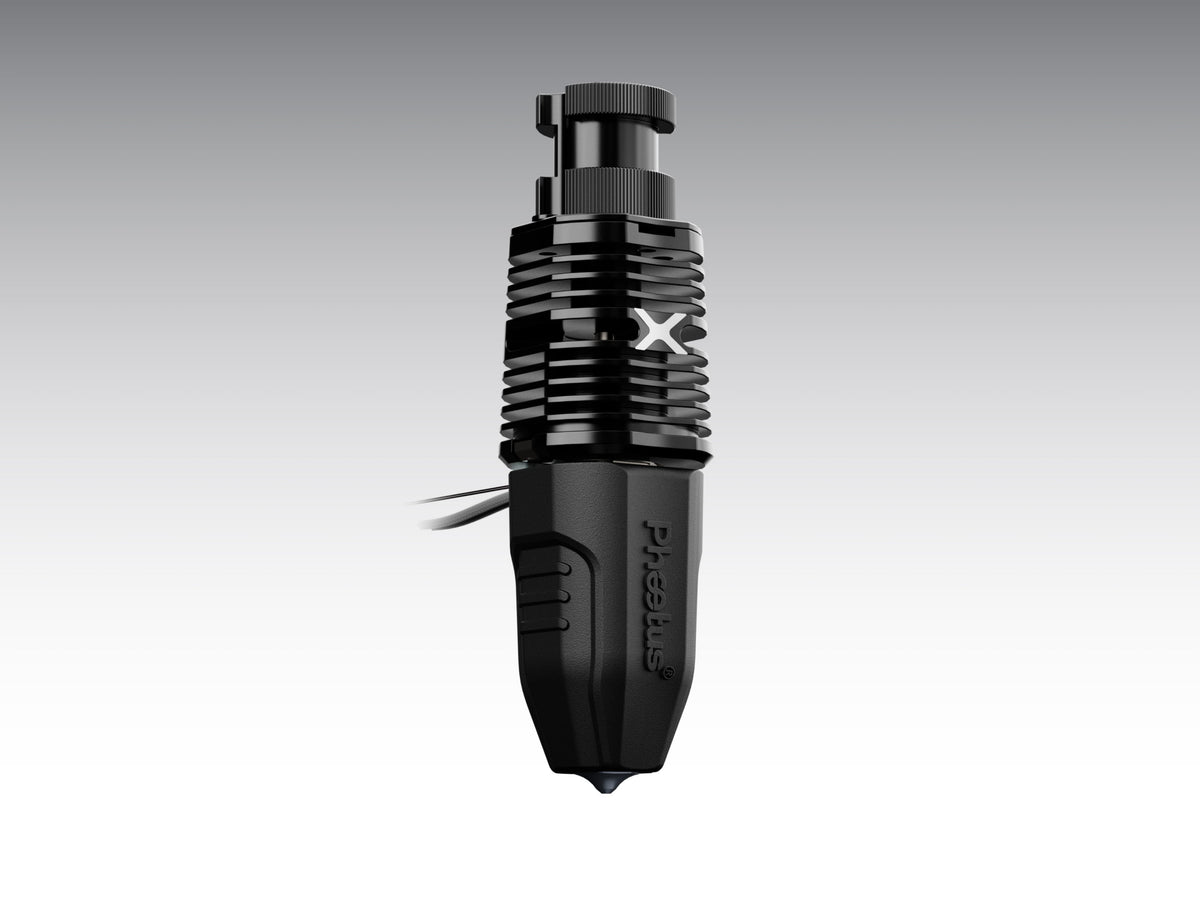

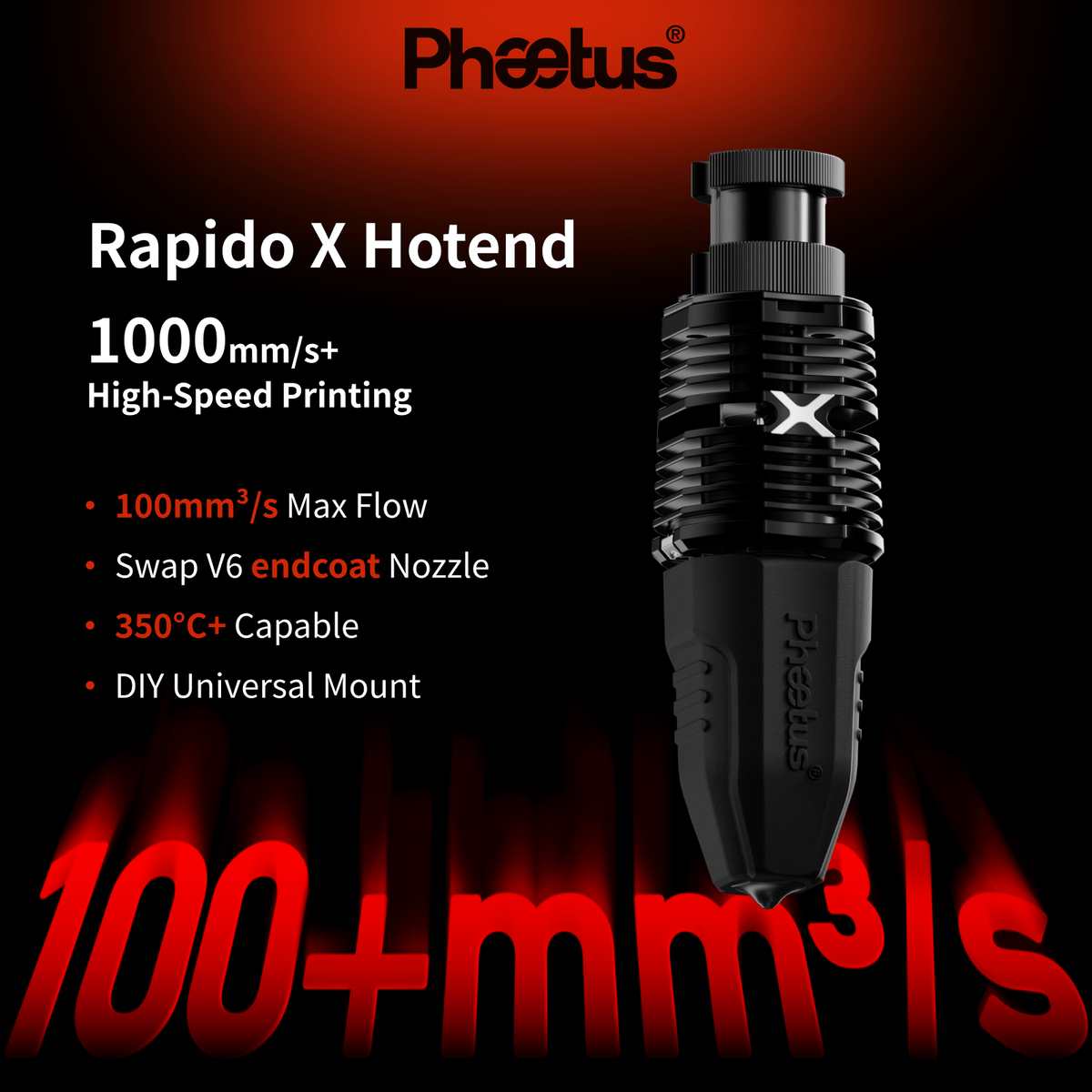

Rapido X Hotend with Liber™ High-Flow Module
$89.00
In stock
Rapido X Hotend with Liber™ High-Flow Module
$89.00
$89.00
About this item
Product Features
Up to 100 mm³/s Ultra-High Flow
Up to 1300 mm/s High-Speed Printing
Liber™ High-Flow Technology for Faster Melting
EndCoat® Gen 2 Nozzle — 3× Wear Resistance
Extreme Cooling for Stable High-Speed Printing
Micron-Level Precision, Ra ≤ 0.2 μm
Authencity Guaranteed
We only sell authentic products from verified brand partners and retail partners globally.
Push High-Speed Printing Further
Built for makers who demand extreme performance, Rapido X combines the Liber™ High-Flow Module with next-generation thermal design to deliver up to 100 mm³/s ultra-high flow and support printing speeds up to 1300 mm/s. Engineered for fast, stable, and consistent extrusion, Rapido X is ready to push high-speed 3D printing to the next level.
The Power Behind Rapido X
Liber™ Ultra-High-Flow Technology
Flexible DIY Interface
EndCoat® Gen 2 Wear-Resistant Nozzle

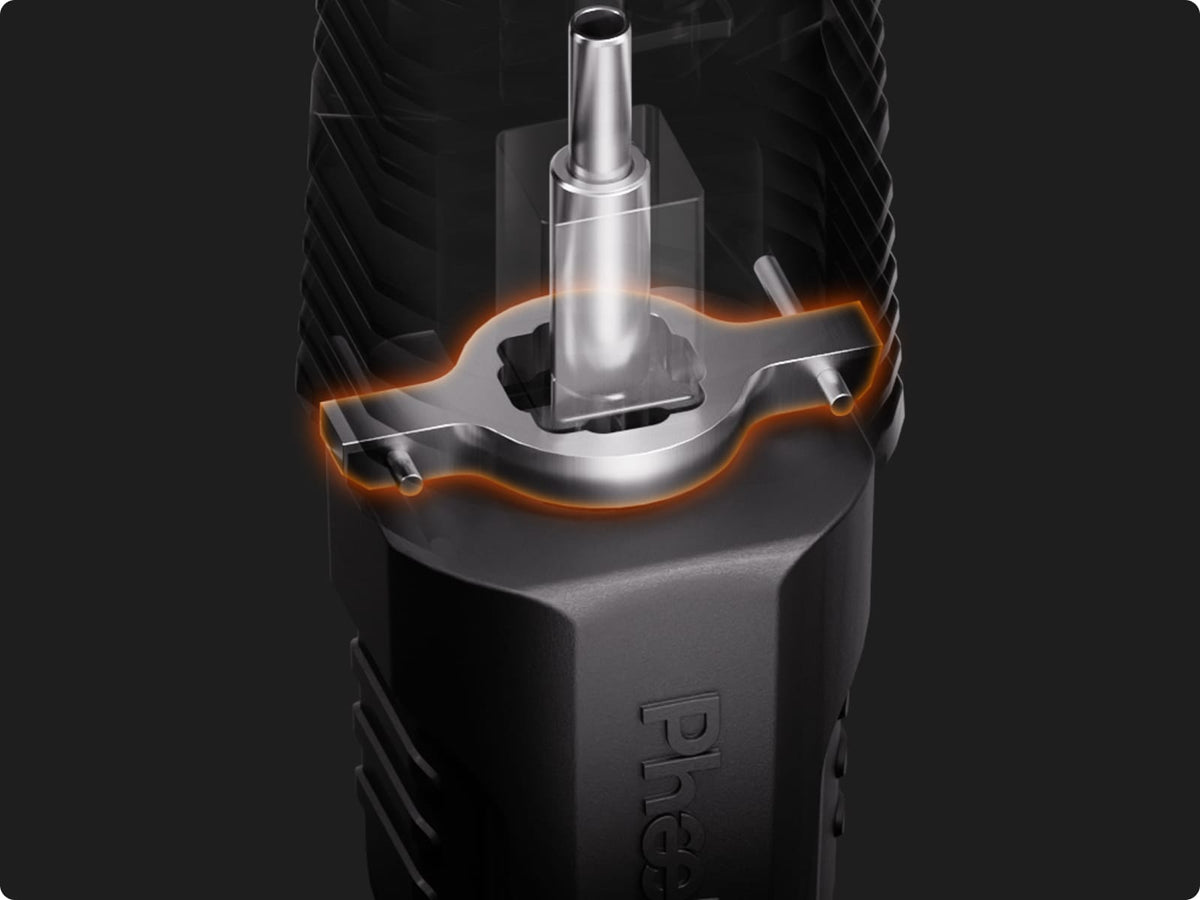

50 N·m High-Torque Resistance

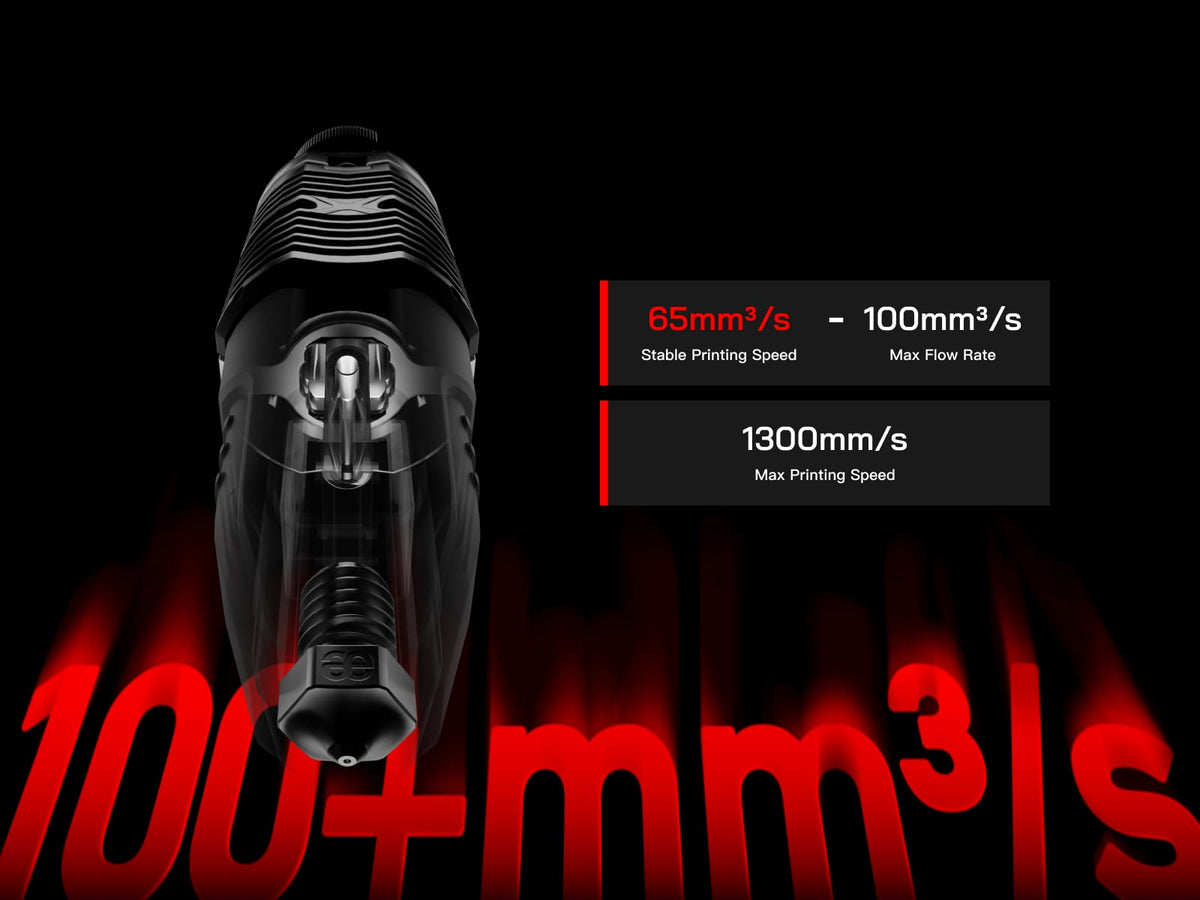

Next-Gen High-Flow Performance
Rapido X combines the Liber™ High-Flow Module with next-generation thermal performance, achieving up to 100 mm³/s max flow and 1300 mm/s printing speed, while maintaining up to 65 mm³/s stable extrusion for demanding high-speed prints.

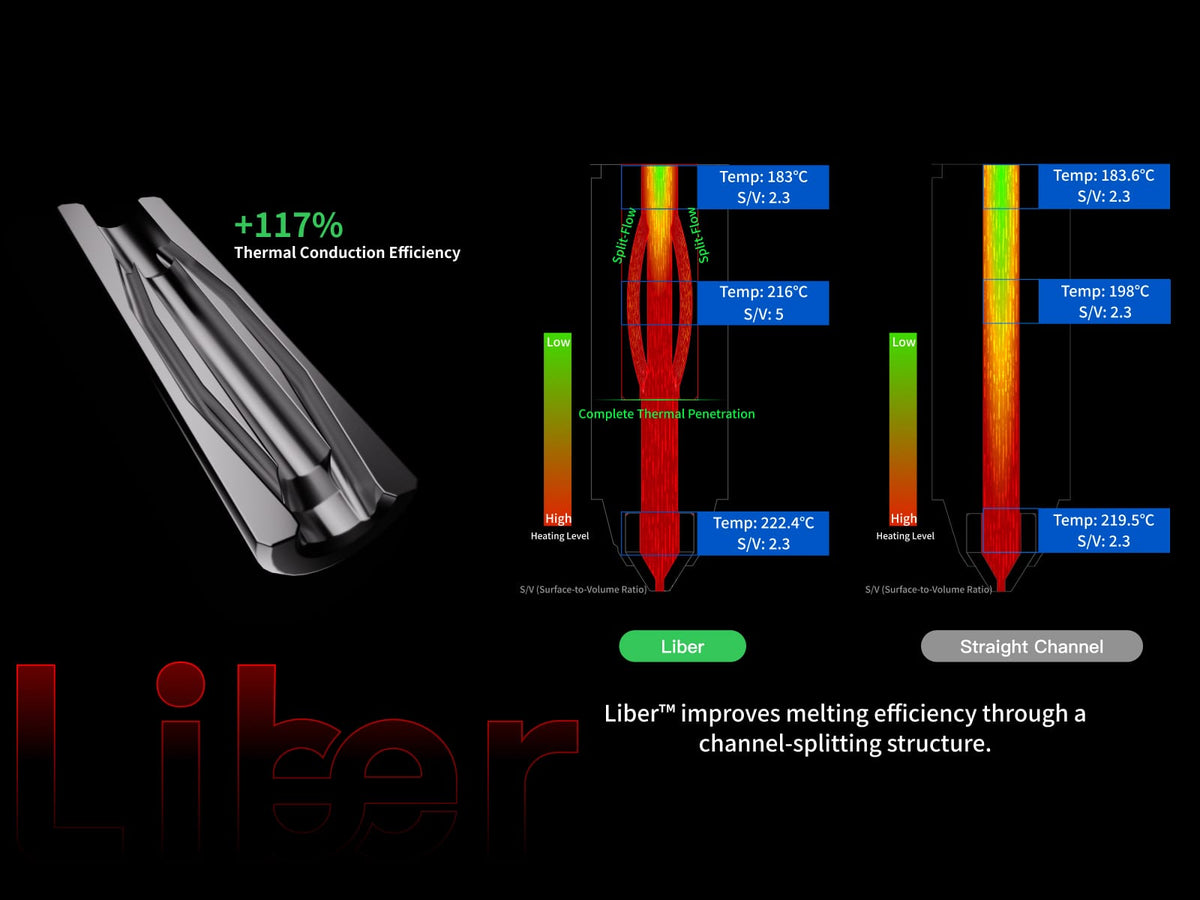

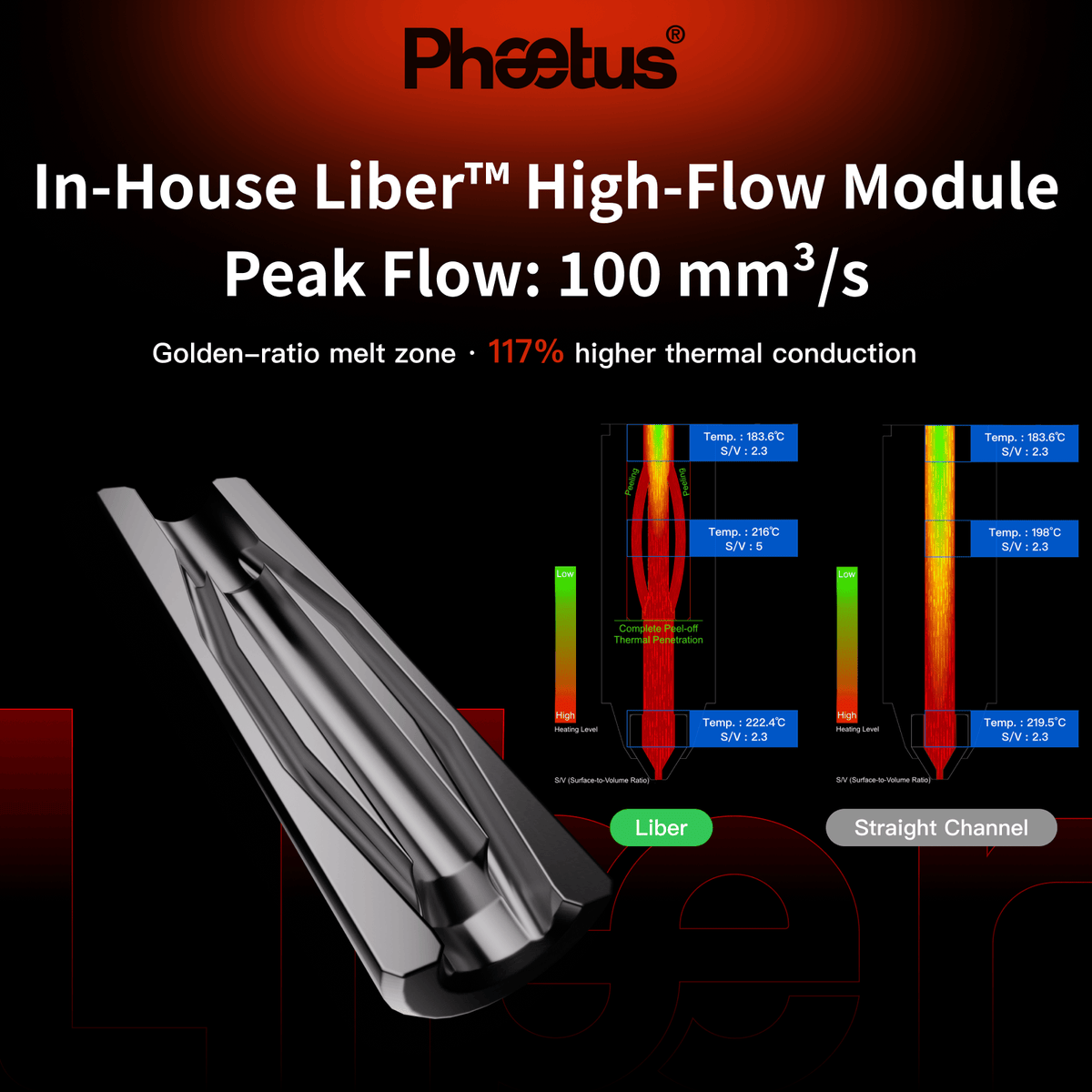

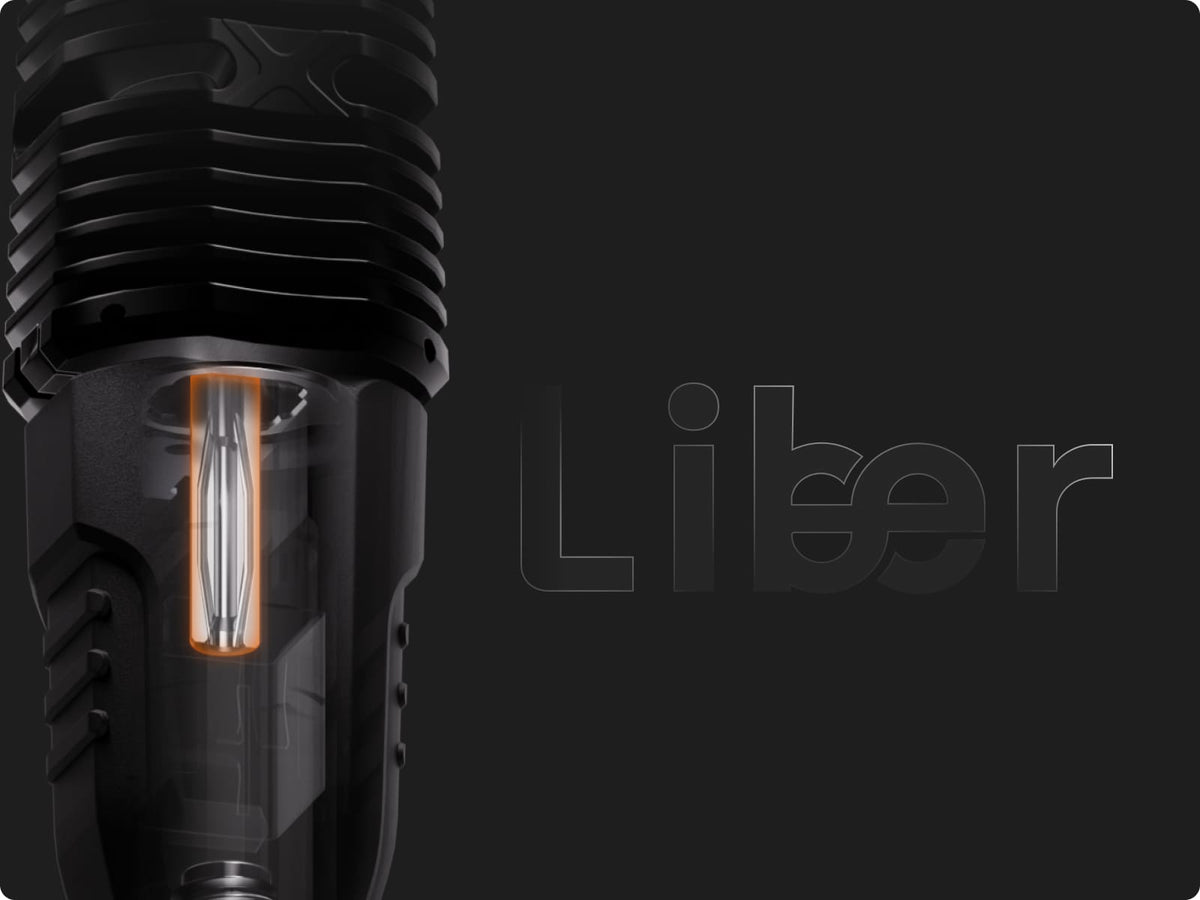

Advanced Thermal Performance with Liber™
Liber™ reshapes the melt path to increase contact area and improve thermal penetration, achieving up to 117% higher thermal conduction efficiency for faster and more consistent melting.

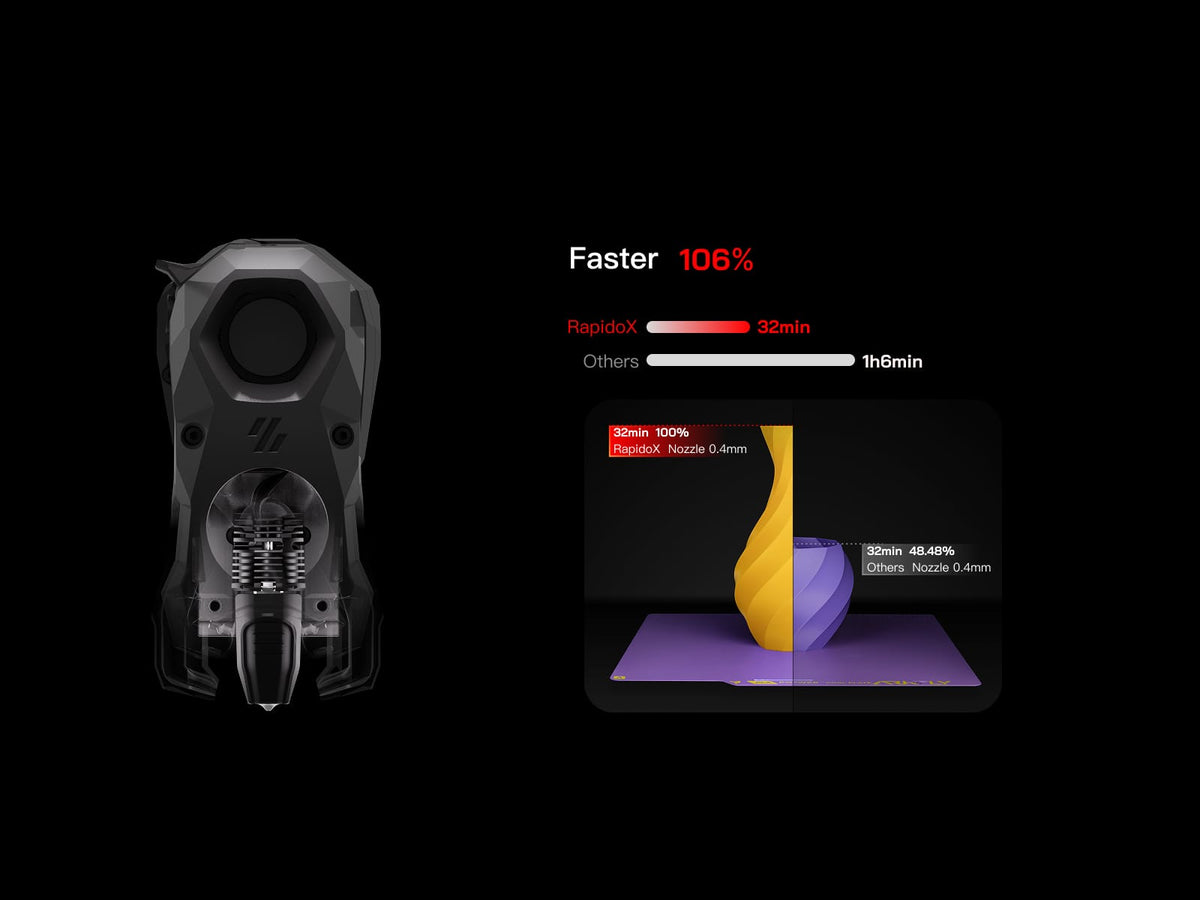

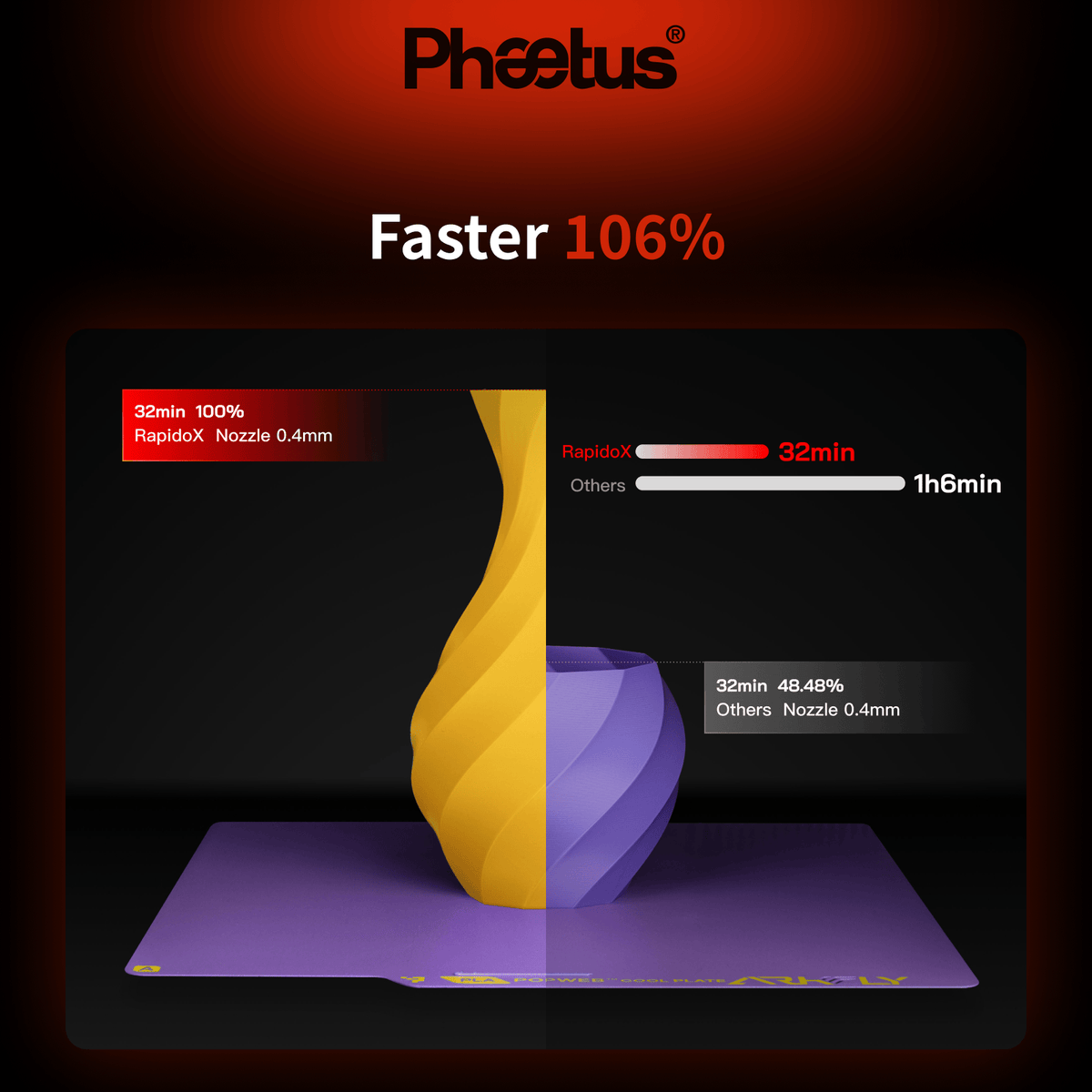

Up to 106% Faster Printing
Rapido X turns high flow into real-world speed. In comparative testing with a 0.4 mm nozzle, it completed the same print in 32 minutes versus 66 minutes, significantly improving productivity for high-speed printing.

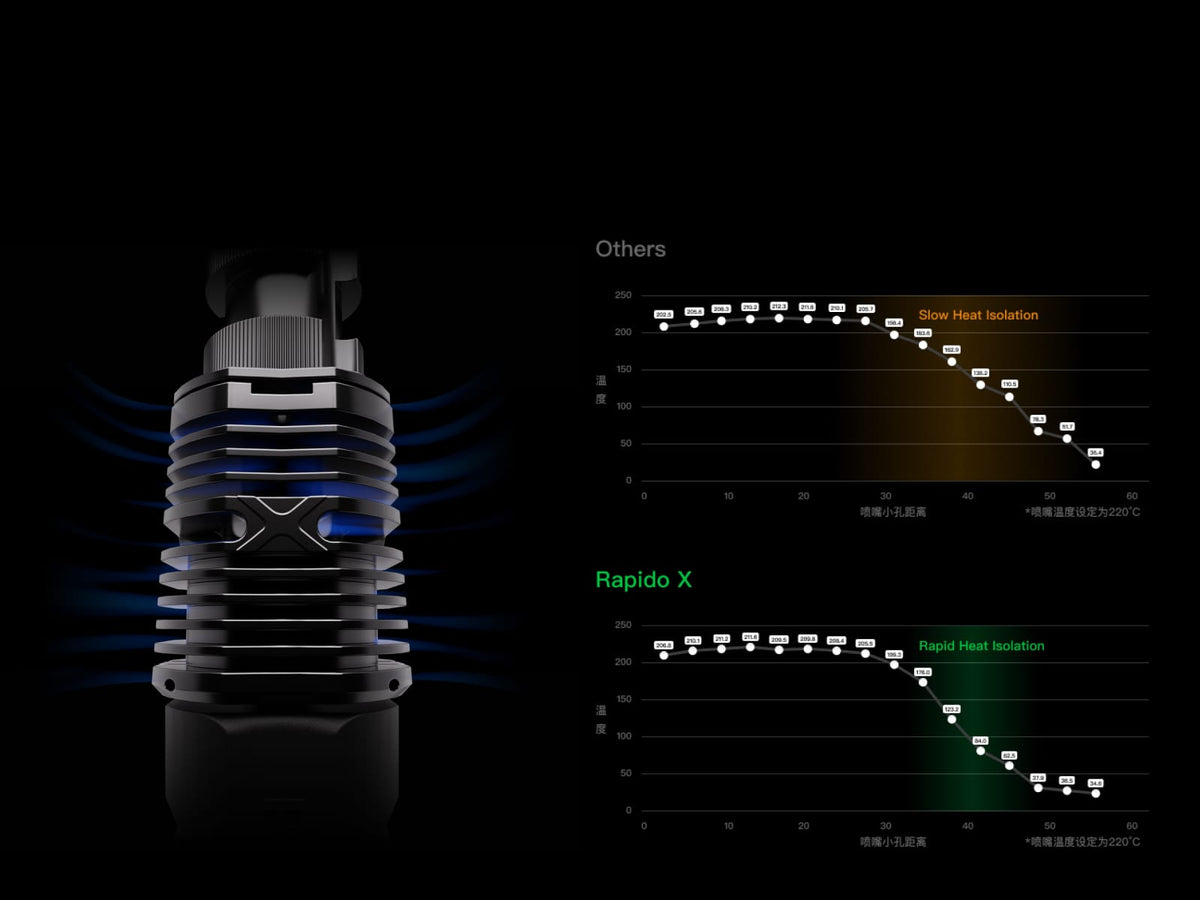

Extreme Cooling.Less Heat Creep.
The optimized thermal isolation structure rapidly separates the hot and cold zones, reducing heat creep for more stable and consistent high-speed printing.

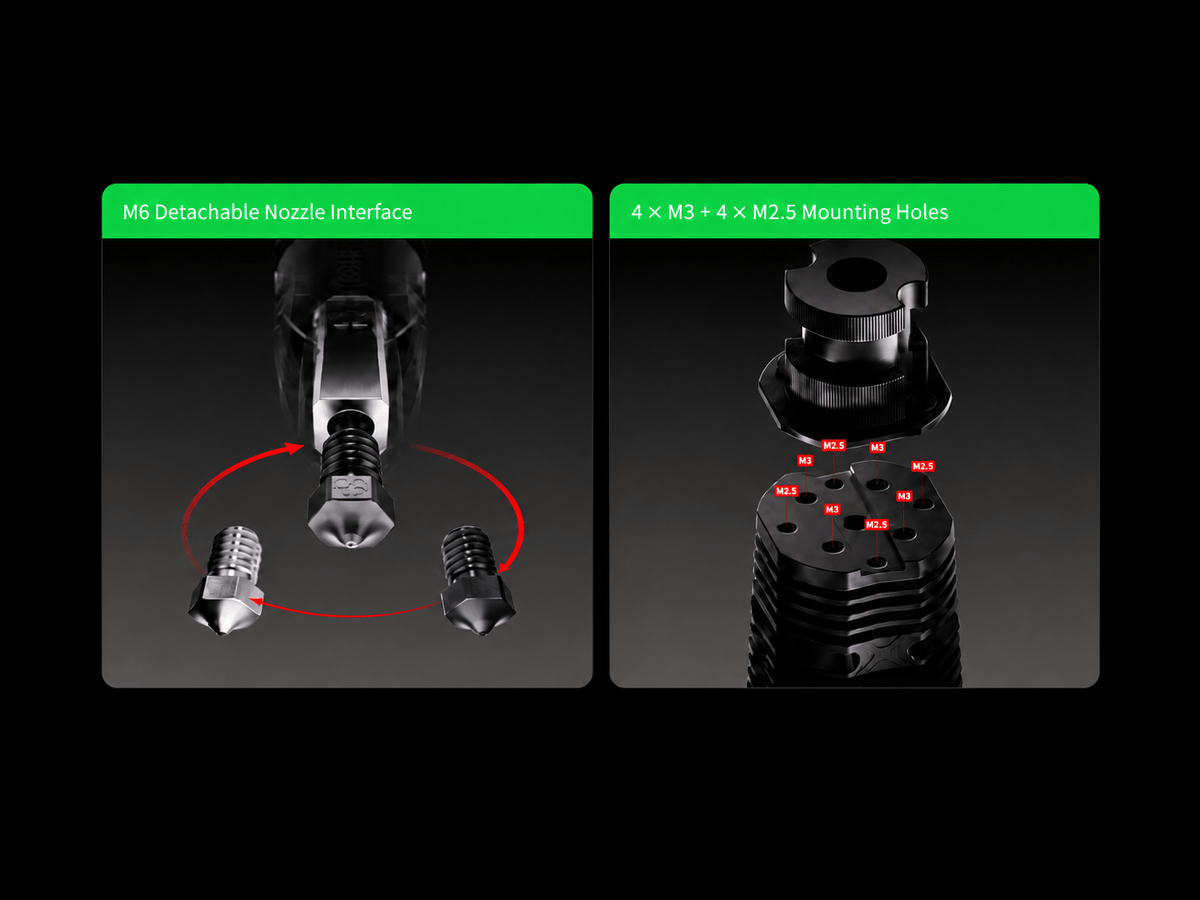

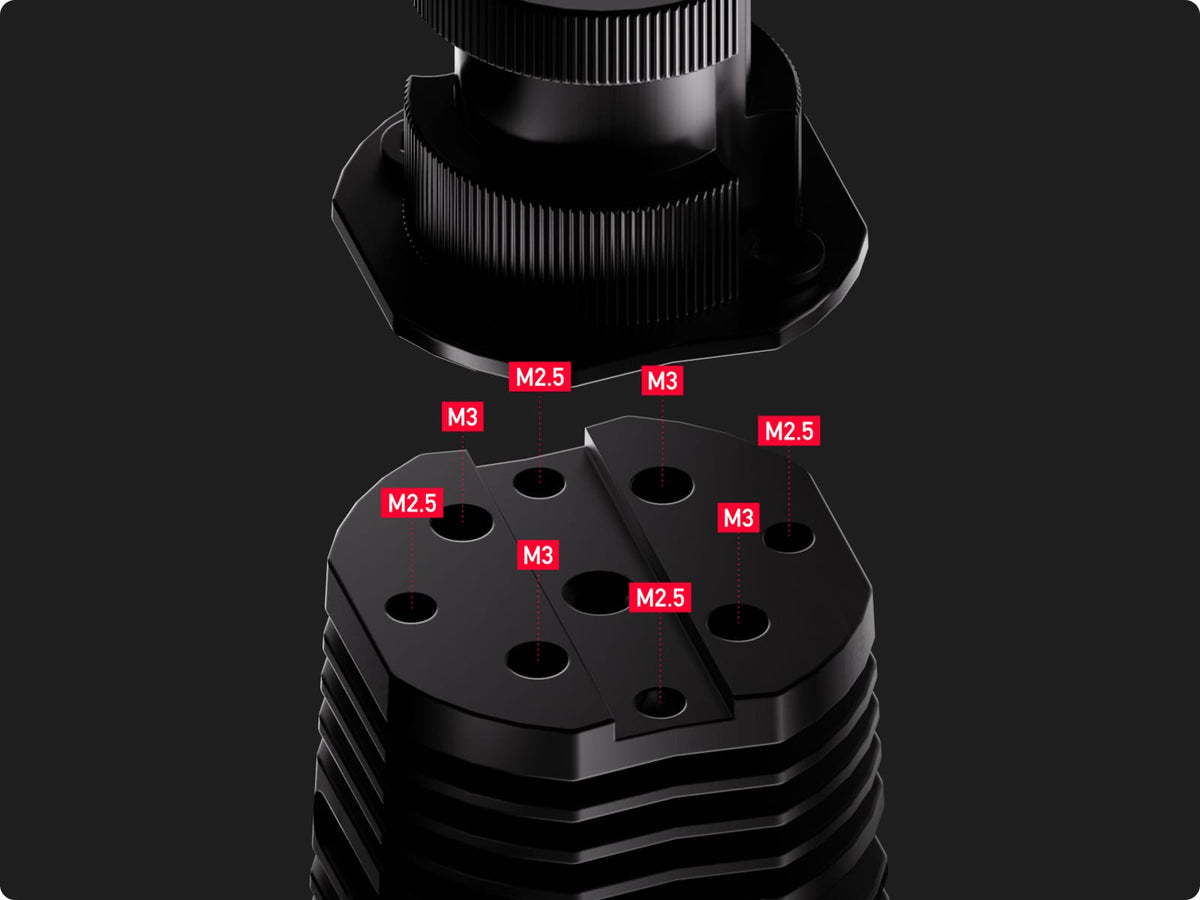

Universal Interfaces. Built for DIY.
Designed for custom builds and broader compatibility, Rapido X features a detachable M6 nozzle interface and multiple mounting points, making it easier to adapt across different printer platforms and DIY setups.

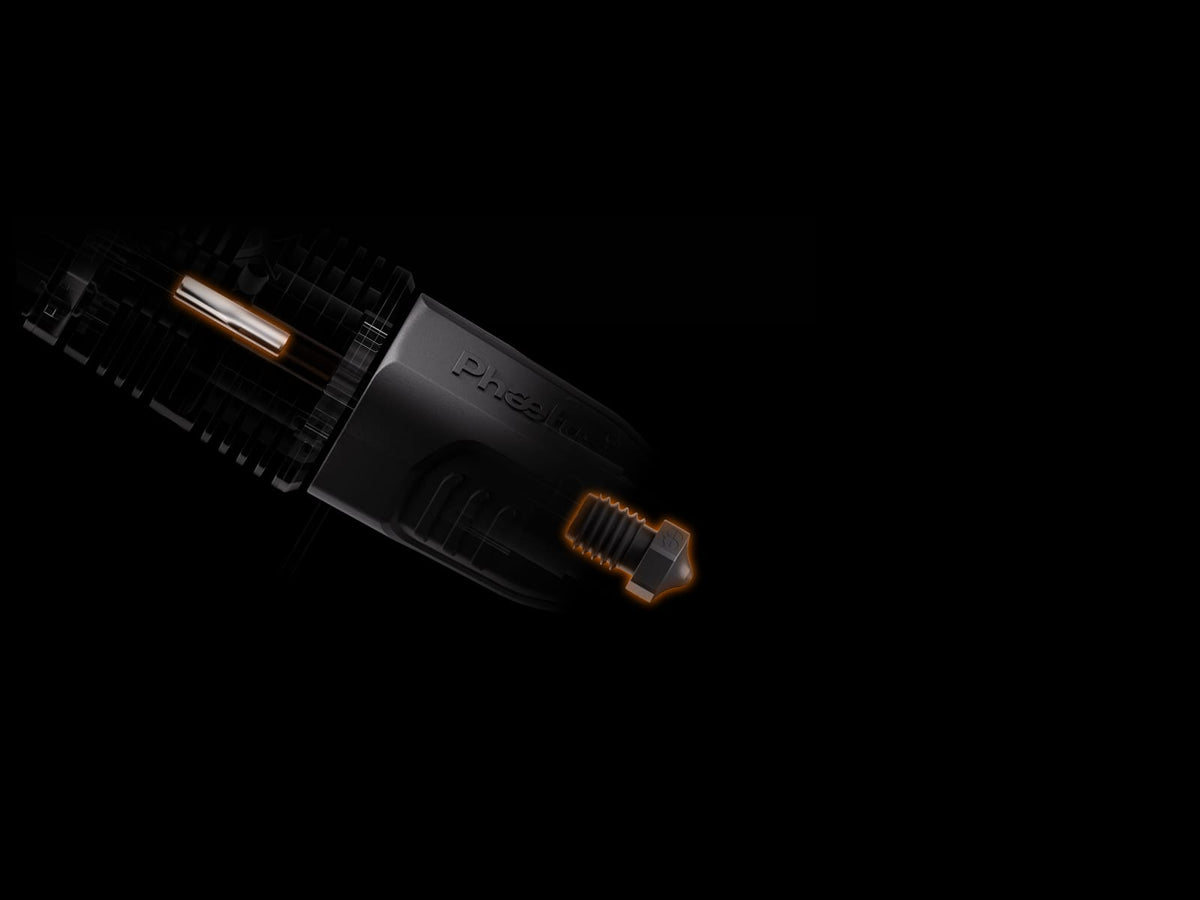

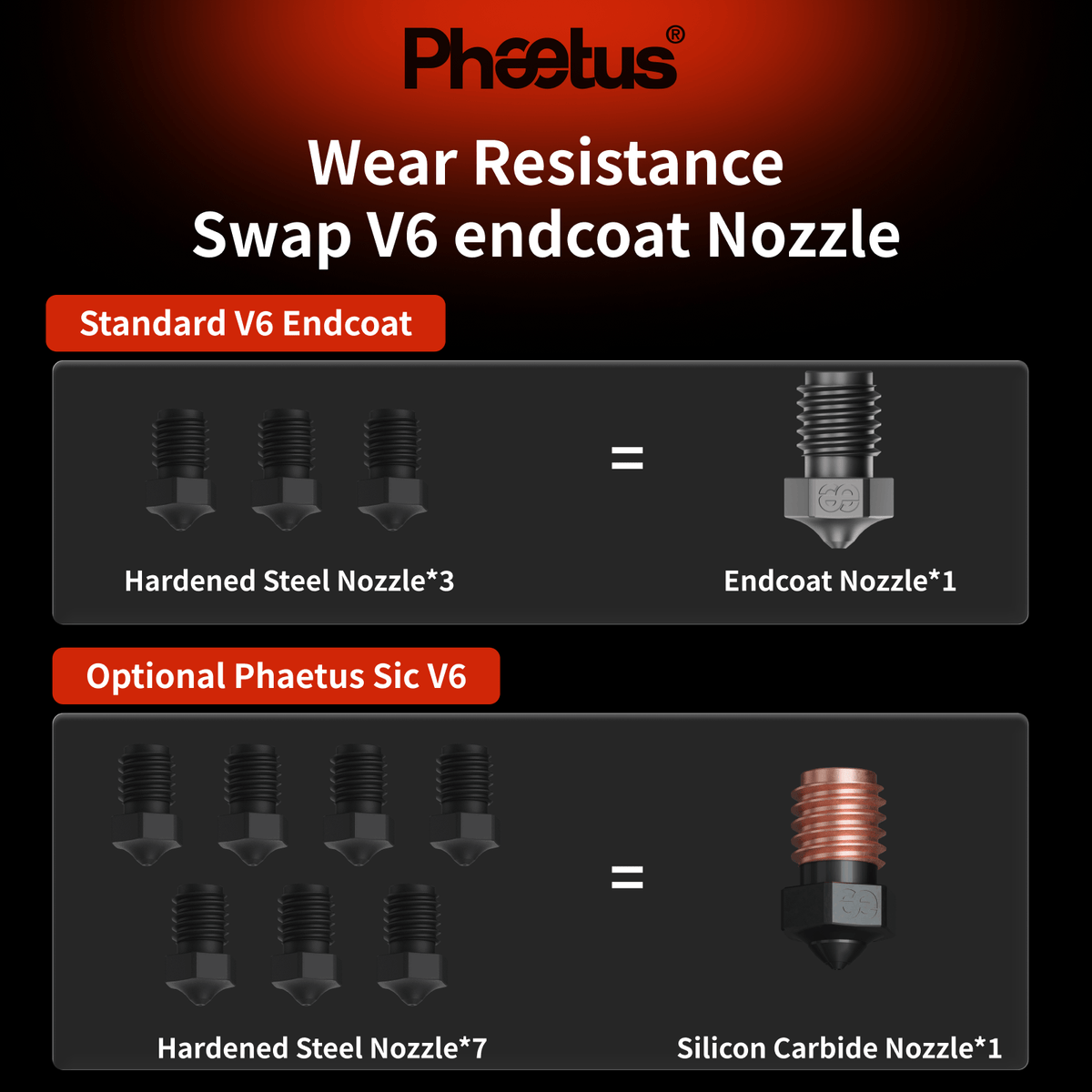

EndCoat® Gen 2 — Built for Abrasive Filaments
Advanced wear-resistant coating enhances nozzle durability when printing abrasive and fiber-filled materials, delivering longer service life and more consistent extrusion performance.

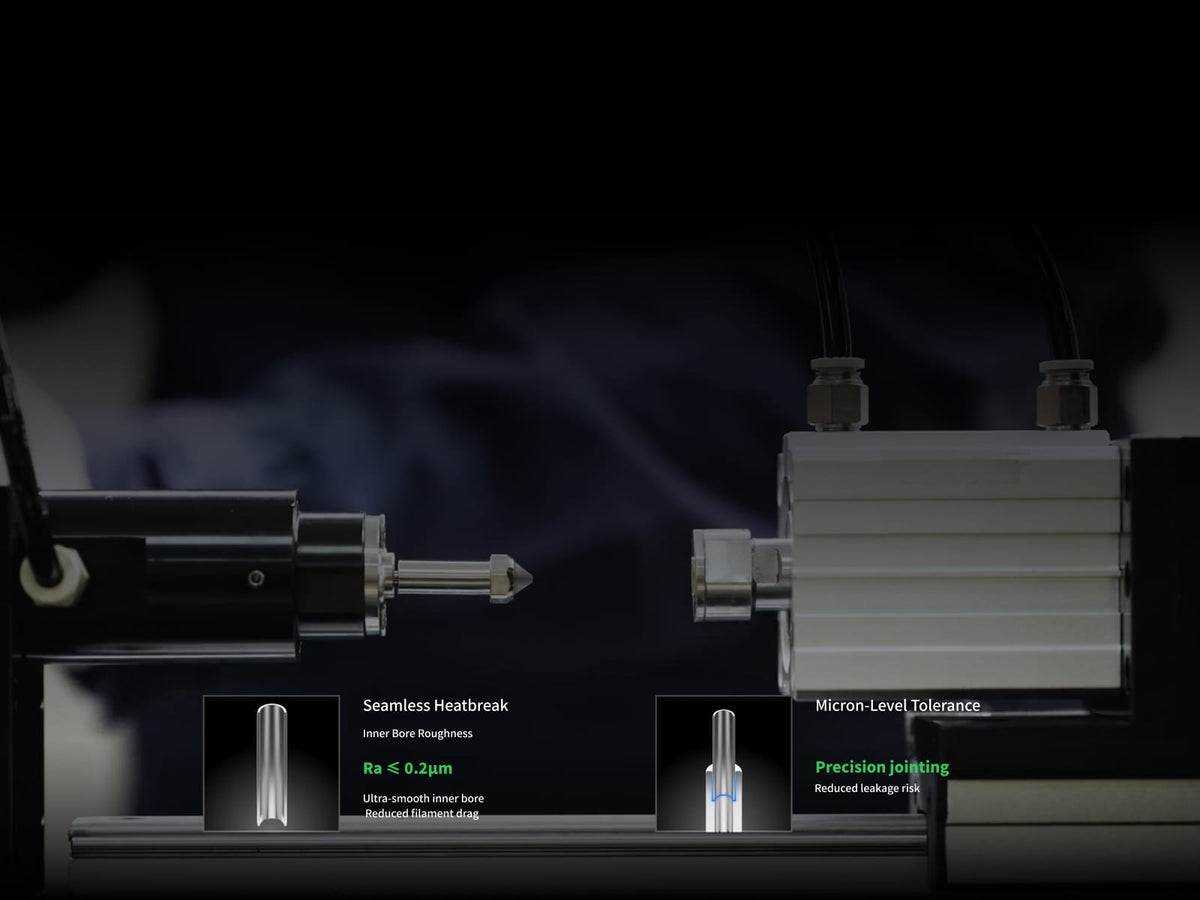

Micron-Level Precision
Ultra-smooth inner bore and precision machining reduce filament drag and leakage risk for smoother, more consistent extrusion.

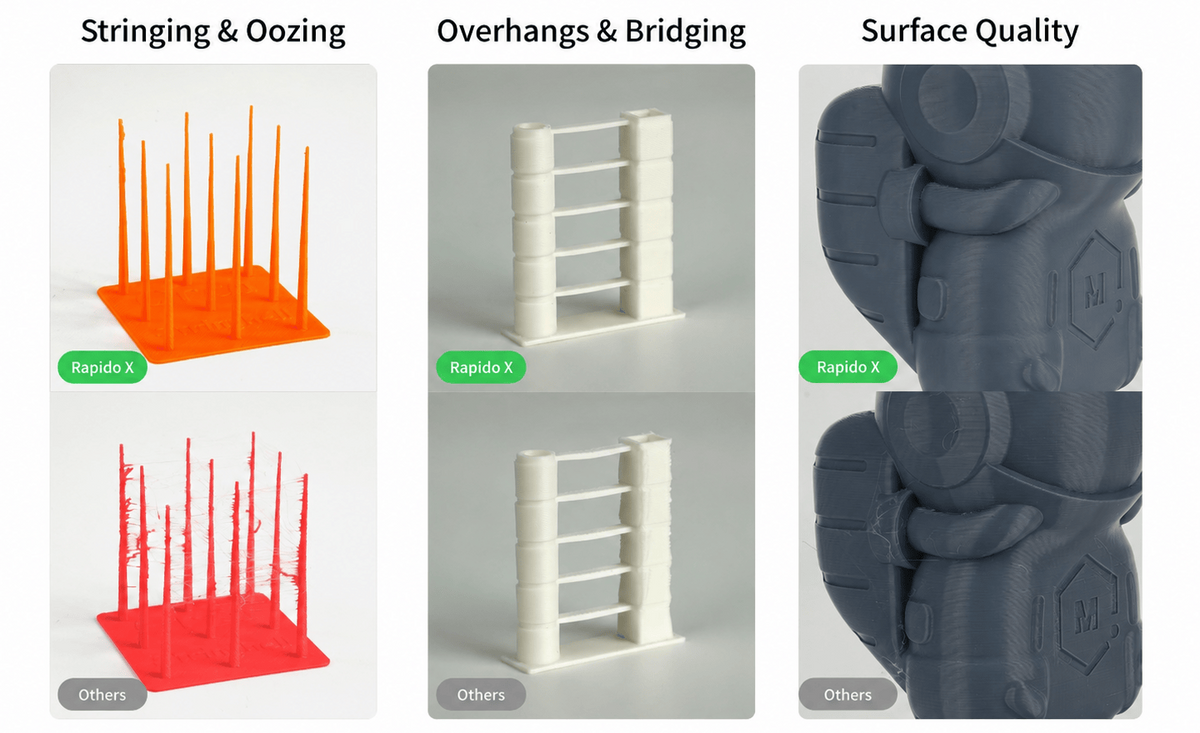

Quality Without Compromise
Consistent extrusion and refined surface quality at high speed.

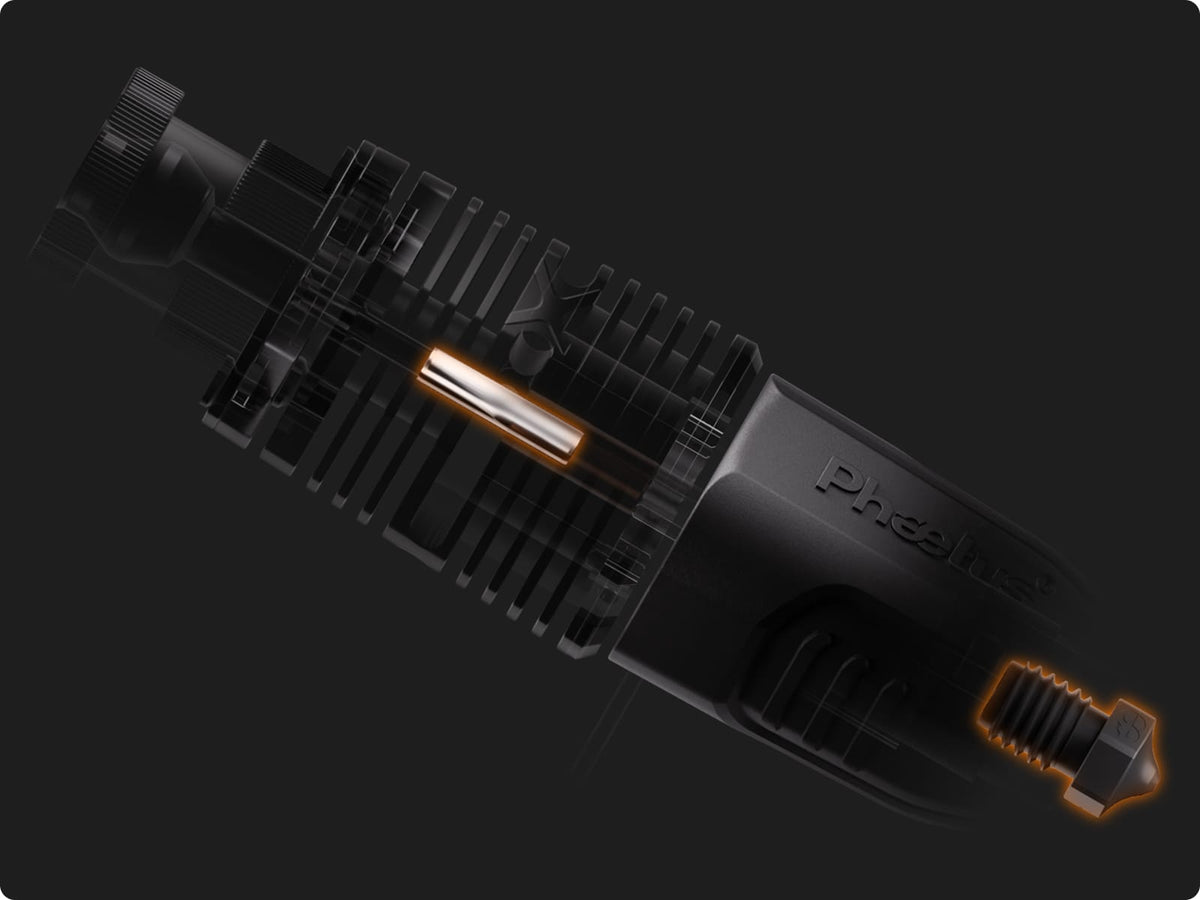

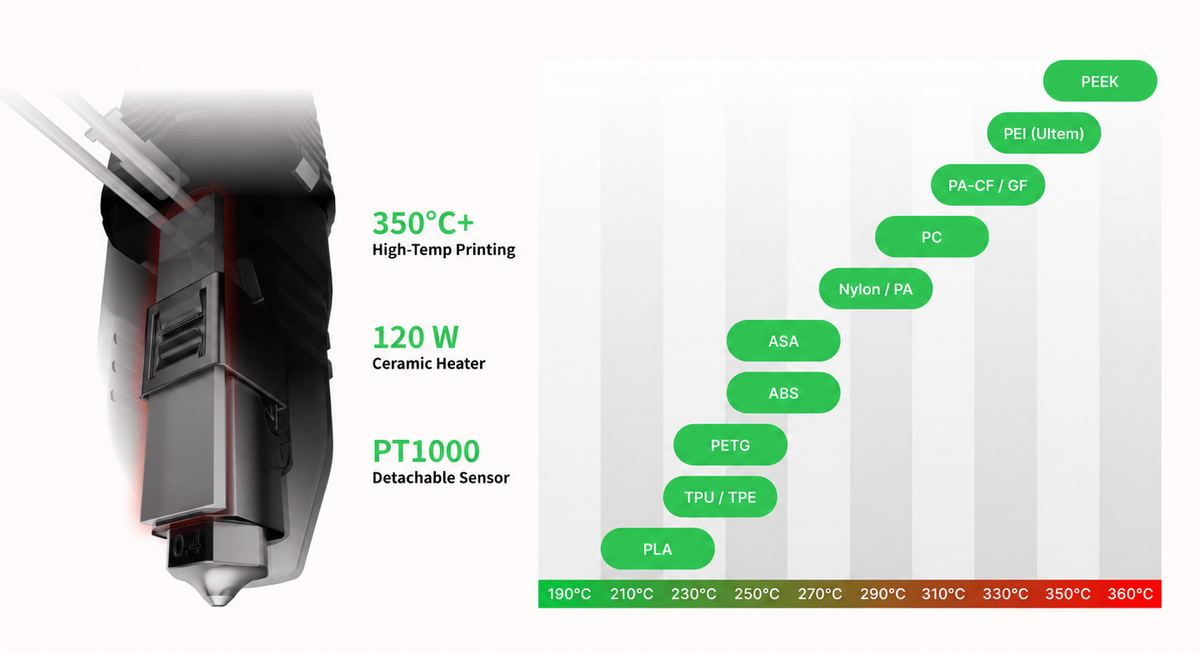

Industrial High-Temperature Performance
With 350°C+ capability, a 120 W ceramic heater, and a detachable PT1000 sensor, Rapido X is built for demanding engineering materials from ABS and PA-CF/GF to PEI and PEEK.
Product specifications
Maximum Flow Rate
103 mm³/s
Heating Power Rate
120W
Thermistor
PT1000
Heat Break Material
Stainless Steel + Endcoat Coating
Heater Block Material
Copper Alloy + Nickel Plated
Product Dimensions
Ø24 × 79.2mm
Nozzle Specification
M6
Nozzle Material
Hardened Steel + Endcoat Coating
Silicone Sock Temp Resistance
320°C
Product Weight
153g

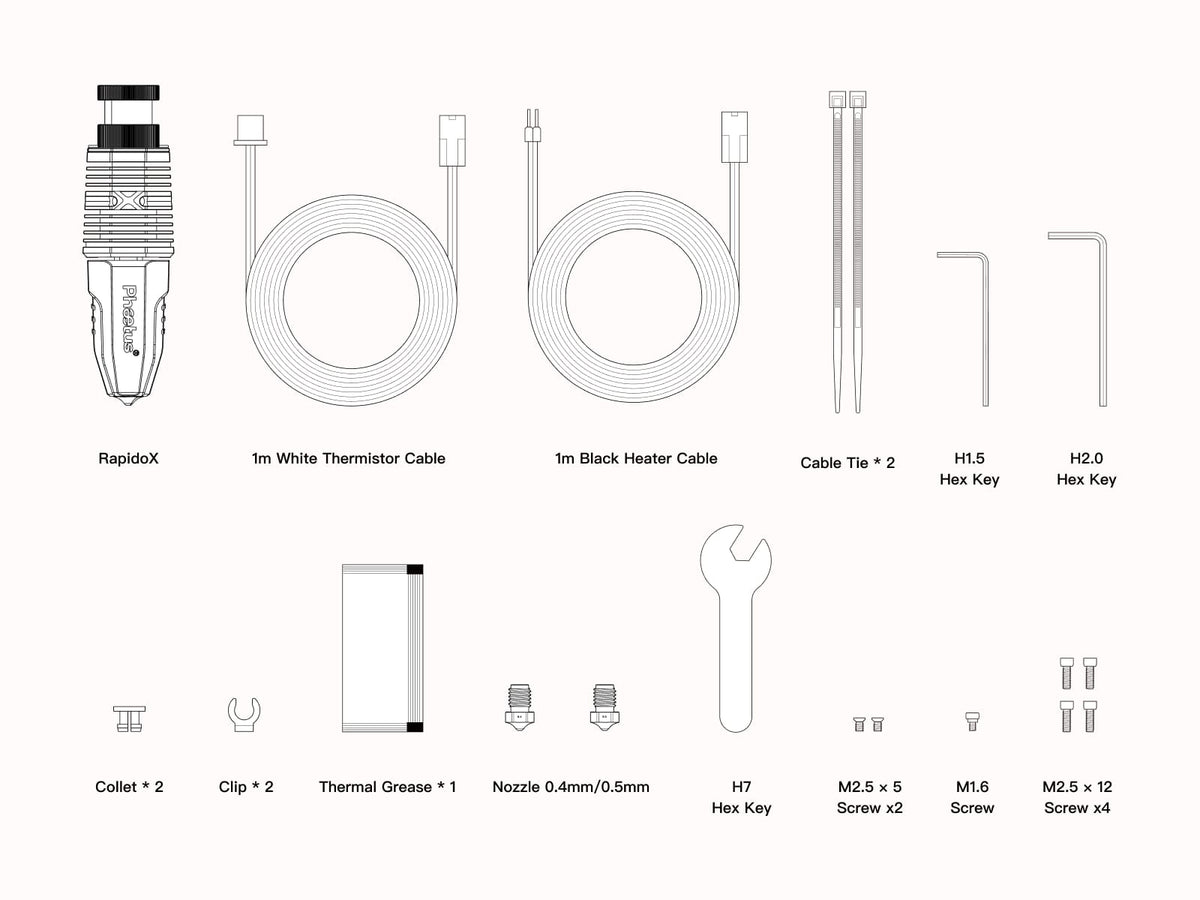

What's In The Box
Q1: Are Rapido X's mounting hole positions compatible with the previous-gen Rapido 1/2 series?
A: Not compatible. Rapido X uses an all-new mounting design. The official team has already uploaded the complete 3D dimensional models and mounting drawings to the GitHub repo:https://github.com/Phaetus/Rapido-X
Q2: What adapters does the manufacturer provide for which printers? How do other machines fit it?
A: Currently the official adapter files cover the full Voron 2.4/Trident/V0 lineup, downloadable from the GitHub repo above. For other machines (e.g. Ender series, Prusa series), you'll need to design your own DIY adapter based on the official dimensional model. The manufacturer will progressively roll out more official fitments based on user demand.
Q3: What mounting methods does Rapido X support?
A: It supports standard 16mm bolt-hole mounting, and is also compatible with the GrooveMount quick-release interface, allowing direct drop-in replacement on most mainstream...
Q4: Will installing Rapido X alone get me 100+ mm³/s flow and 1000+ mm/s print speeds?
A: Rapido X is a core component for achieving ultra-high-speed printing, but hitting peak performance requires the whole machine system to work together:
Pairing with a Phaetus Apus 2 extruder is recommended (max torque 80N-cm)
Requires a high-torque stepper motor (≥2A) and a 32-bit mainboard
Firmware must have Linear Advance (pressure advance) and Input Shaping enabled
The machine's frame and linear rails need sufficient rigidity to handle high-speed motion
Q5: What's the maximum operating temperature of Rapido X? What filaments does it support?
A: The standard version has a max operating temp of 360°C, supporting the full range of materials including PLA, ABS, PETG, TPU, PA (nylon), PC, PA-CF/GF, PEI, and PEEK.
Q6: What's the heating power and heat-up speed of Rapido X?
A: It uses a 24V 120W all-in-one ceramic heater core. Heating from room temperature to 200°C takes about 25 seconds, and to 300°C about 45 seconds.
Q7: What nozzles does Rapido X come stock with? Is it compatible with other brands' nozzles?
A: It ships stock with 2 Endcoat-coated nozzles, in 0.4mm and 0.5mm sizes. The Endcoat coating offers high-temp resistance (360°C), wear resistance, and anti-stick properties. Rapido X is compatible with standard V6-interface nozzles, supporting brass, hardened steel, ruby-tipped, and other nozzle materials.
Q8: What are Rapido X's wear parts/consumables? Where can I buy them?
A: The main wear parts are the nozzle, heater cartridge, and thermistor. All wear parts are standard components, available from Phaetus's official flagship store or authorized resellers.
Q9: What test models does the manufacturer provide? Where can I download them?
A: The official team provides a full set of calibration test models, including flow rate test models, temp towers, retraction tests, pressure advance calibration models, and vibration compensation (input shaping) tests — all files are already uploaded to the GitHub repo above.
Q10: Is there a detailed installation and user manual?
A: Yes — the manufacturer provides electronic installation manuals, firmware configuration guides, and common troubleshooting handbooks in both Chinese and English, downloadable from the GitHub repo or the Phaetus official website.
Q11: How do I swap the nozzle on Rapido X?
A: Rapido X supports a one-handed nozzle-swap design:
- Heat the hotend to 200°C.
- Use a wrench to directly unscrew the old nozzle.
- Screw on the new nozzle and tighten — no need to hold the heater block in place.
