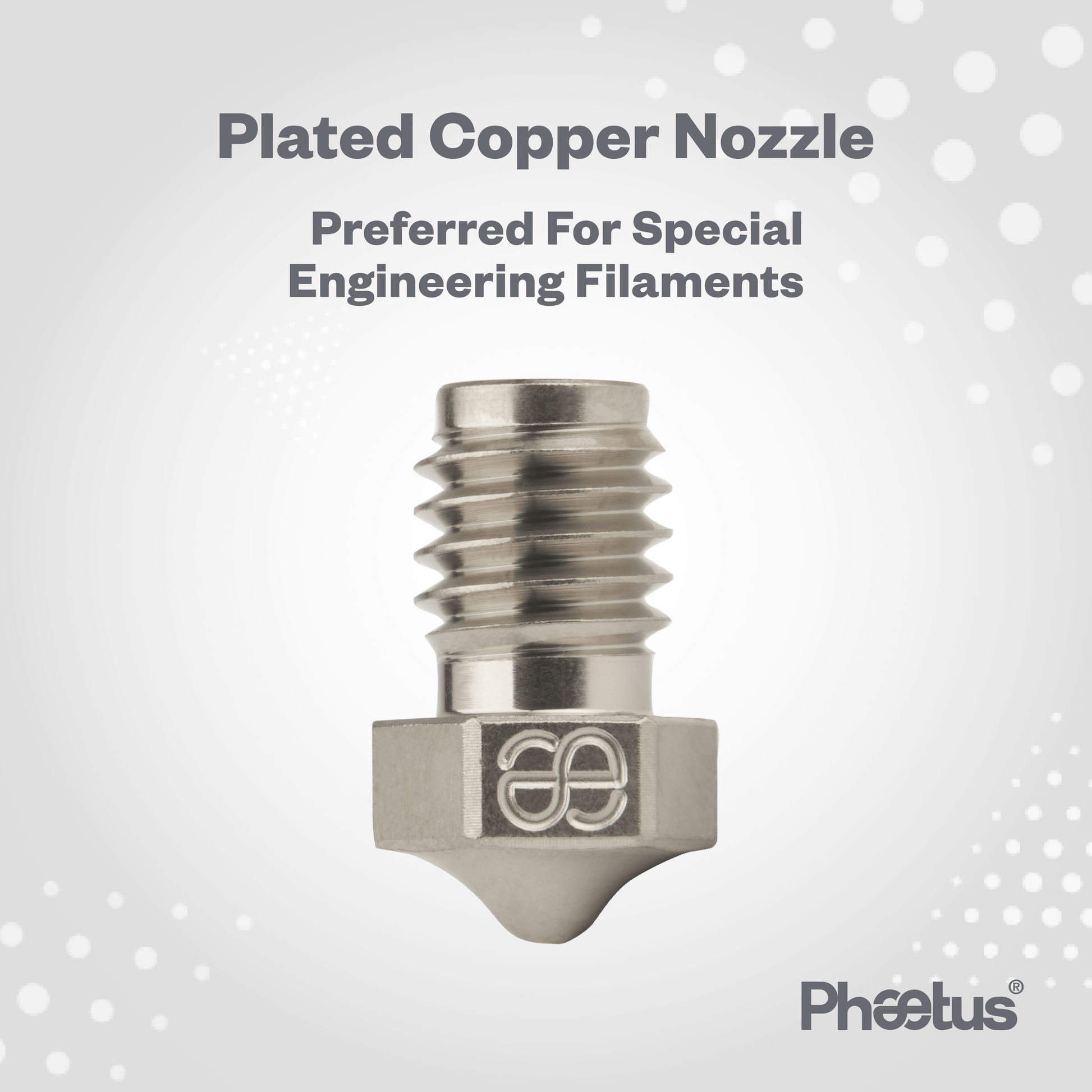

BESCHICHTETE KUPFERDÜSE

Modell: PS (V6)
Düsendurchmesser: 0.2mm
Filamentdurchmesser: 1.75

$10.00

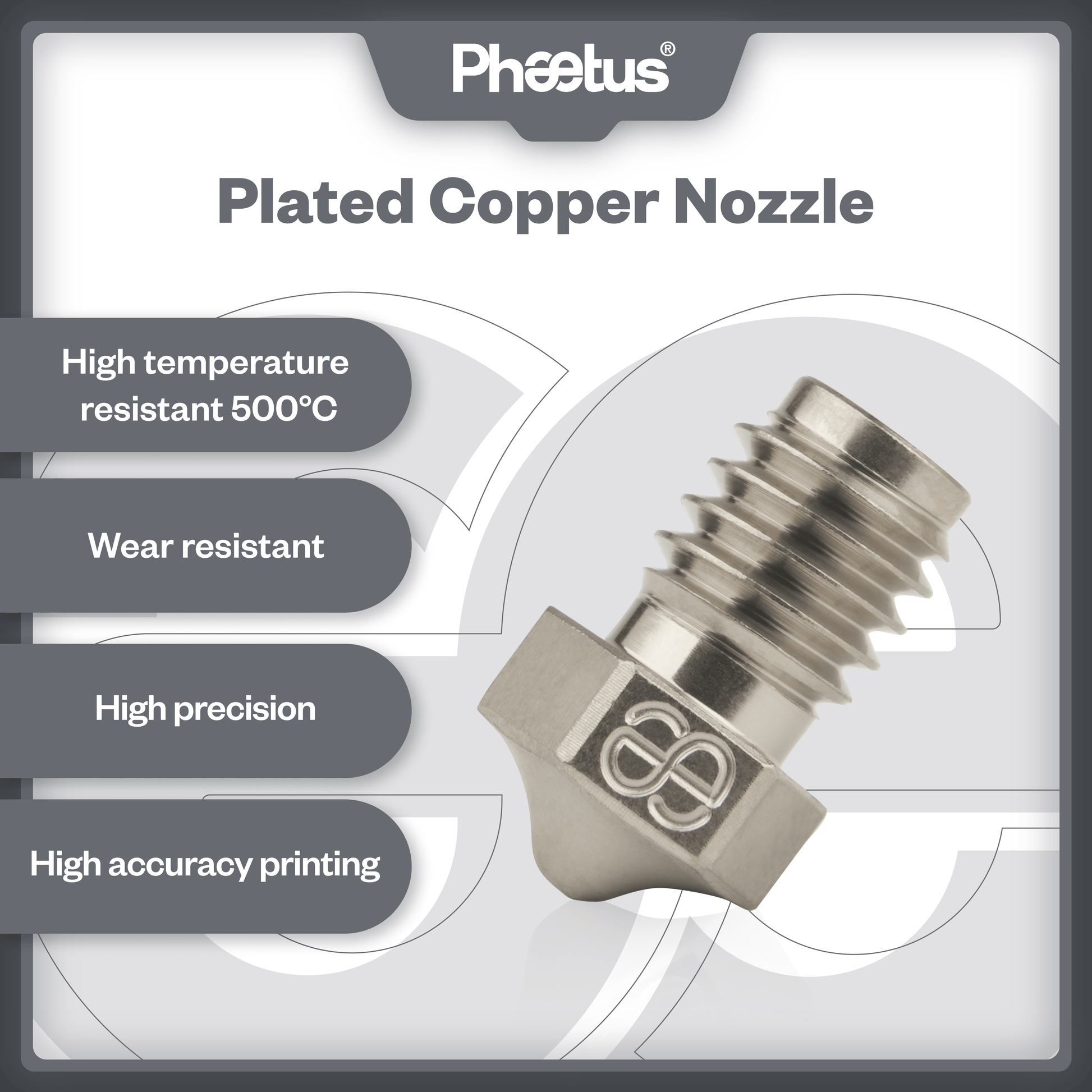

500°C High-Temperature Printing

330 W/m·K High Thermal Conductivity

Ultra-Smooth Nickel-Plated Inner Surface

Auf Lager

This product will be available for sale in 2 weeks, but you can pre-order now to receive 10% discount!

BESCHICHTETE KUPFERDÜSE

$10.00

$10.00

Shop Now
Modell: PS (V6)
  • PS (V6)
  • PH (Vulkan)
  • PMK8 (MK8)
Düsendurchmesser: 0.2mm
  • 0.2mm
  • 0,25 mm
  • 0.35mm
  • 0,4 mm – Ausverkauft
  • 0,5 mm
  • 0,6 mm
  • 0,8 mm
  • 1,0 mm
  • 1,2 mm – Nicht verfügbar
Filamentdurchmesser: 1.75
  • 1.75

About this item

Funktioniert gut für Hochtemperaturanwendungen, Drucken mit Filamenten wie PEEK, PEKK, PEI, PSU, PPSU usw.

Authencity Guaranteed

We only sell authentic products from verified brand partners and retail partners globally.

  • Visa
  • Mastercard
  • Diners Club
  • PayPal
  • American Express

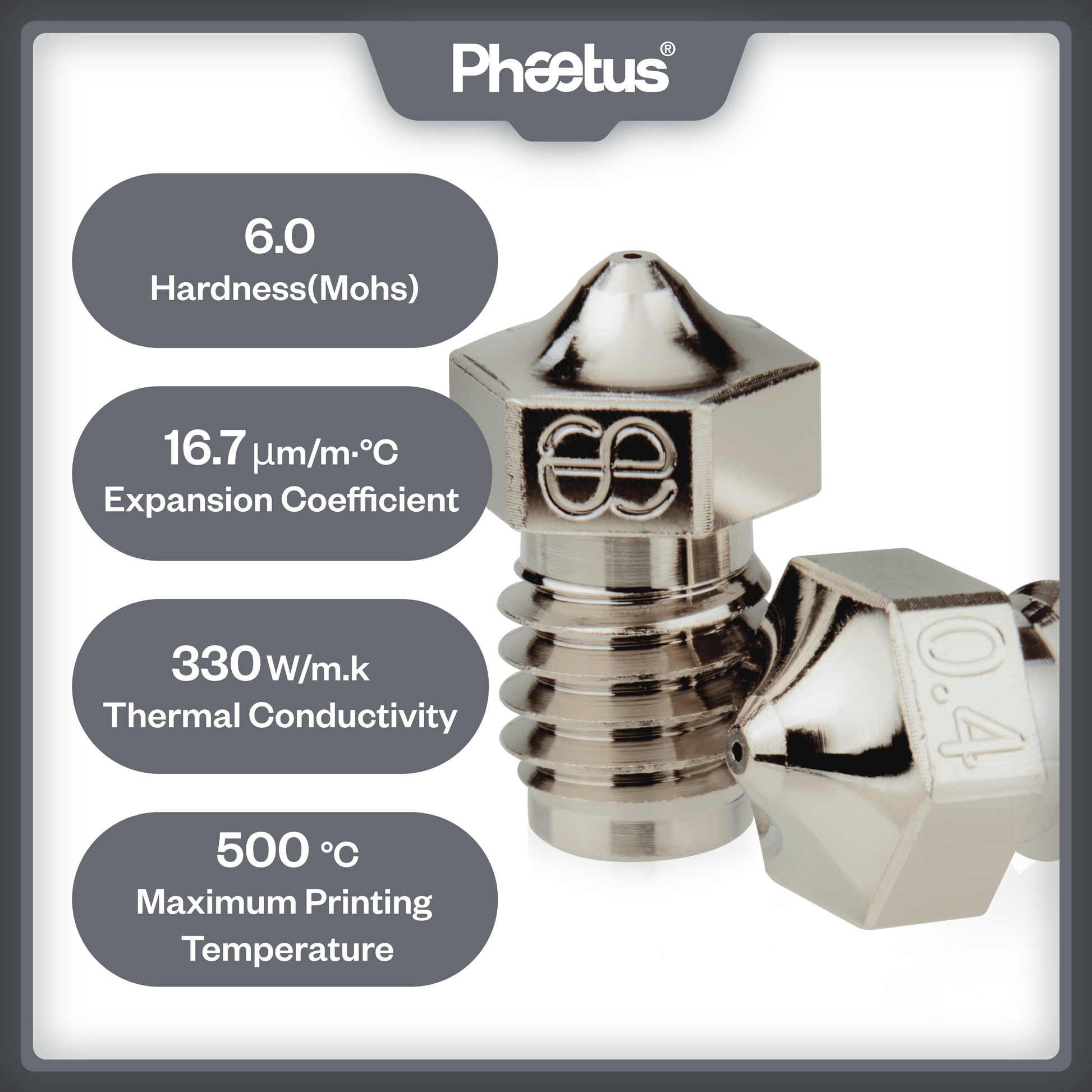

Product specifications

Hardness (Mohs)

6

Maximum Printing Temperature

500℃

Thermal Conductivity

330W/m·k

Expansion Coefficient

16.7μm/m·℃

Adaptation Models

1100-PS-PC
1200-PS-PC
1110-PH-PC

175:Φ0.25/Φ0.30/Φ0.35/Φ0.40/Φ0.50/Φ0.60/Φ0.80/Φ1.00
300:Φ0.25/Φ0.30/Φ0.35/Φ0.40/Φ0.50/Φ0.60/Φ0.80/Φ1.00

Performance Analysis

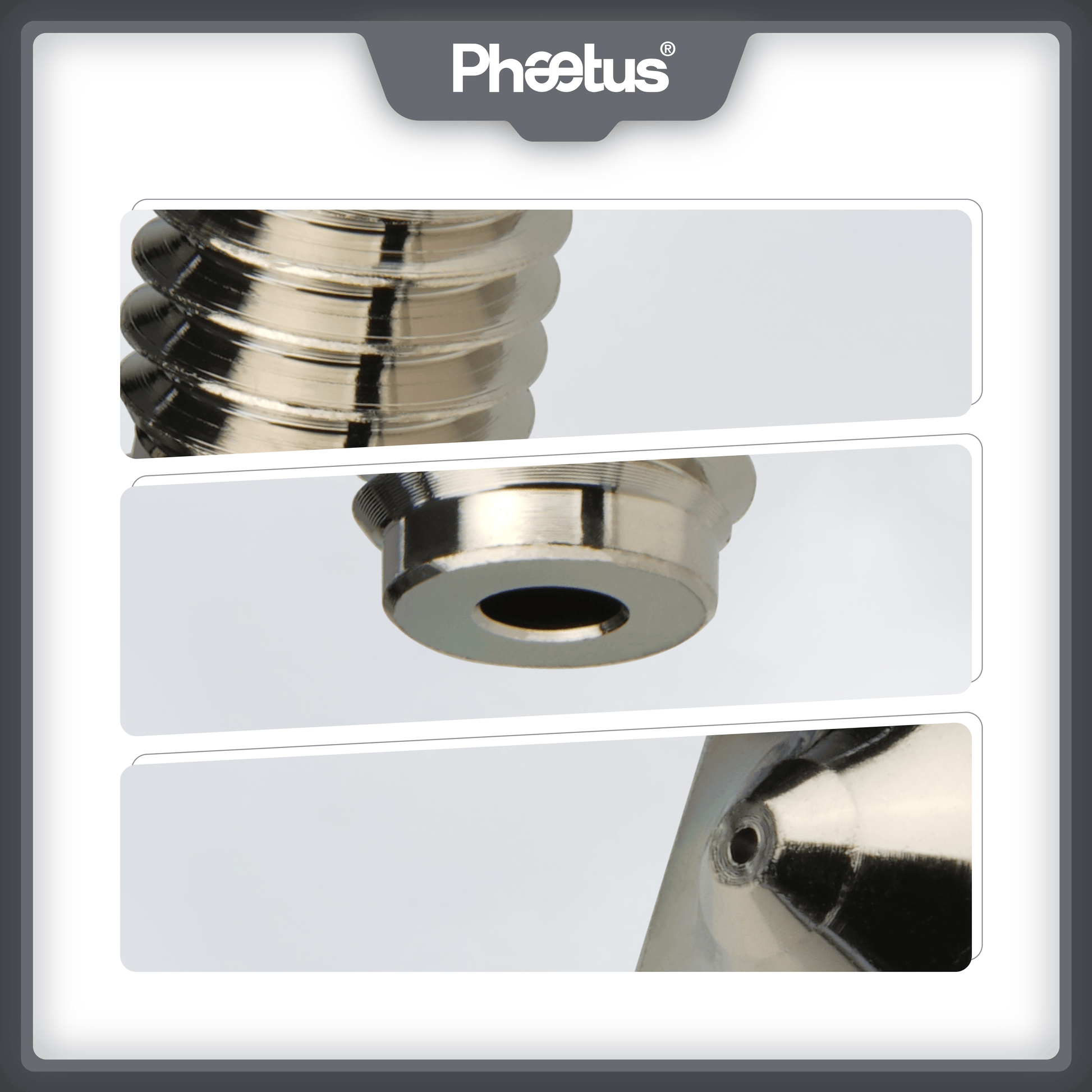

Temperature resistance up to 500℃, the best choice for special engineering plastics such as PEEK.High thermal performance keeps an even temperature of nozzle tip during printing, thus guaranteeing a stable extrusion; Meanwhile, further improves printing speed without sacrificing the quality.Special processing technology and post-treatment make the nozzle without burr at the edge of tip and debris in the hole.Inner hole roughness lower than Ra0.4 and the whole nozzle nickel plated, enhanced higher smoothness and less adhesion.Superior quality copper alloy with high strength and high thermal conductivity ensures the stability of performance.

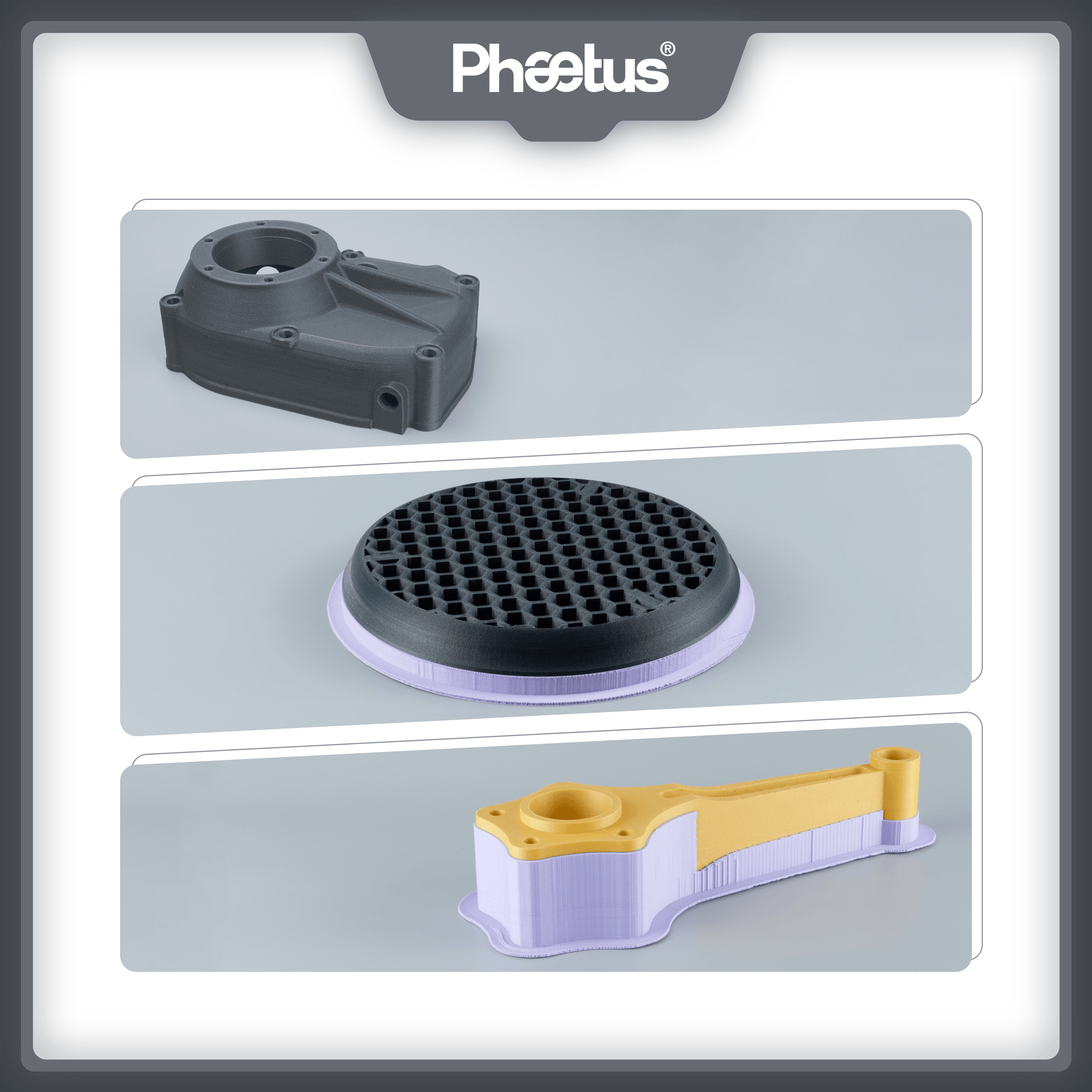

Applicable Filament

Working well for high temperature applications, printing with materials such as PEEK, PEKK, PEI, PSU, PPSU and etc.

Product Features

Min. Orifice Diameter

φ0.25

Tolerance

±0.01mm

Inner Hole Roughness

≤Ra0.4μm

Concentricity

≤0.02mm
